SN8S Series

Manufacturer: KEMET

Catalog

NMC 72.0UH 2.0A 0.0750 OHM TH

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	DC Resistance (DCR) (Max)	Inductance @ Frequency	Number of Lines	Height (Max) [z]	Height (Max) [Max] [z]	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Height (Max) [z]	Height (Max)

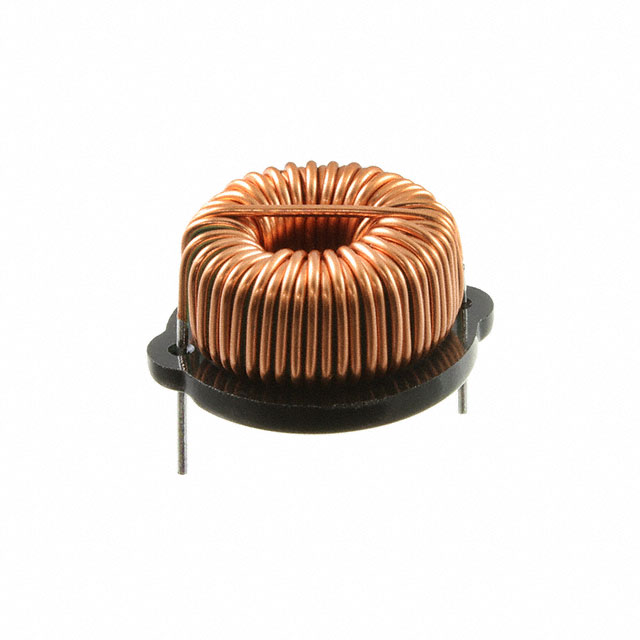

KEMET SN8S-50P2	Through Hole	105 ░C	-25 °C	0.748 "	19 mm	Vertical 4 PC Pin	75 mOhm	72 µH	2	10.5 mm	0.413 in	Power Line	2 A

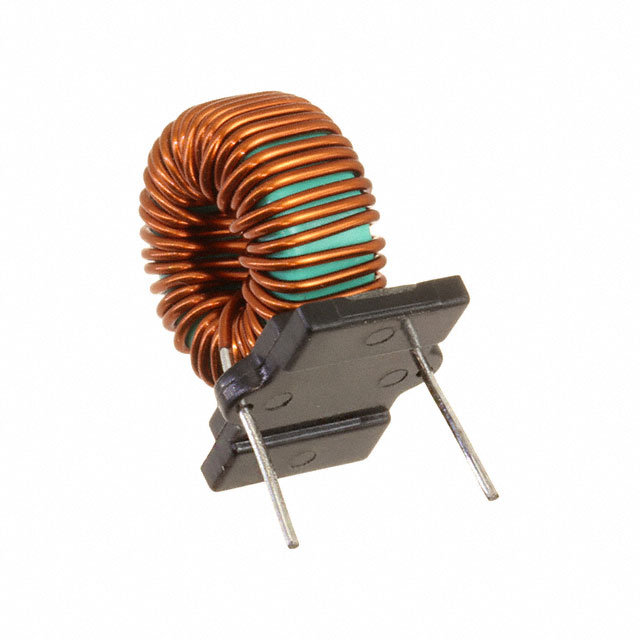

KEMET SN8S-400JA	Through Hole	105 ░C	-25 °C			Horizontal 2 PC Pin		46 µH	2	0.709 in 18 mm		Power Line	2 A	52 mOhm	0.709 in	0.472 "	12 mm	18 mm

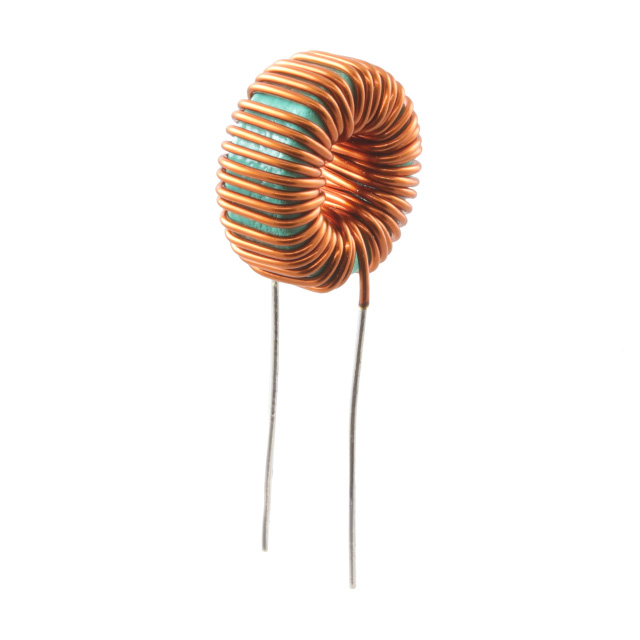

KEMET SN8S-400	Through Hole	105 ░C	-25 °C			No Base Vertical		46 µH	2	17.5 mm		Power Line	2 A	52 mOhm					2 Lead	0.689 in

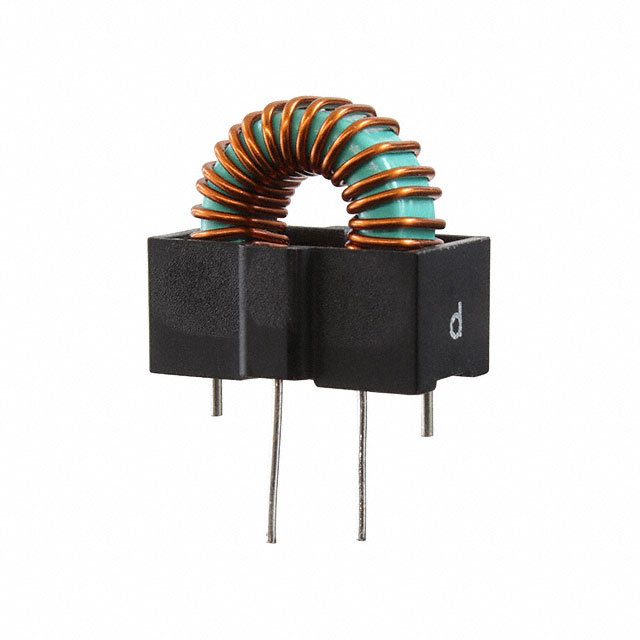

KEMET SN8S-300JB	Through Hole	105 ░C	-25 °C			4 PC Pin Horizontal		26 µH	2		0.854 in	Power Line	2 A	55 mOhm	0.709 in	0.492 "	12.5 mm	18 mm			21.7 mm
KEMET SN8S-300	Through Hole	105 ░C	-25 °C			No Base Vertical		26 µH	2	17.5 mm		Power Line	2 A	42 mOhm					2 Lead	0.689 in
