ISO7741E-Q1 Series

Automotive Grade 0, high-speed, robust-EMC quad-channel digital isolator

Catalog

Automotive Grade 0, high-speed, robust-EMC quad-channel digital isolator

Part	Channel Type	Number of Channels	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Package / Case [x]	Package / Case	Package / Case [y]	Data Rate	Mounting Type	Type	Pulse Width Distortion (Max) [Max]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Common Mode Transient Immunity (Min) [Min]	Technology	Package / Case	Package / Case	Voltage - Isolation	Primary Attributes	Utilized IC / Part	Supplied Contents	Function	Qualification	Grade	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]
Texas Instruments ISO7741FBDW	Unidirectional	4	5.5 V	2.25 V	-55 °C	125 °C	3	1	0.295 in	16-SOIC	7.5 mm	100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SOIC	2.4 ns	2.4 ns	16 ns	16 ns	85 kV/Ás	Capacitive Coupling
Texas Instruments ISO7741FDBQR	Unidirectional	4	5.5 V	2.25 V	-55 °C	125 °C	3	1		16-SSOP		100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SSOP	2.4 ns	2.4 ns	16 ns	16 ns	85 kV/Ás	Capacitive Coupling	0.154 in	3.9 mm	3000 VAC

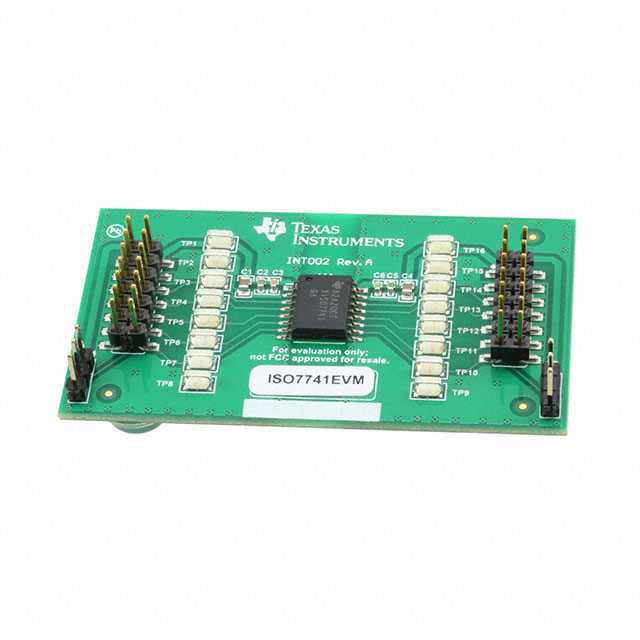

Texas Instruments ISO7741EVM														Interface												4-Channel (Quad)	ISO7741	Board(s)	Digital Isolator
Texas Instruments ISO7741FQDWQ1	Unidirectional	4	5.5 V	2.25 V	-40 °C	125 °C	3	1	0.295 in	16-SOIC	7.5 mm	100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SOIC	2.4 ns	2.4 ns	16 ns	16 ns	40 kV/µs	Capacitive Coupling								AEC-Q100	Automotive
Texas Instruments ISO7741FSDBQ	Unidirectional	4	5.5 V	2.25 V	-55 °C	125 °C	3	1		16-SSOP		100 Mbps	Surface Mount	CAN RS232 RS485 SPI	4.9 ns	16-SSOP	2.4 ns	2.4 ns	16 ns	16 ns	85 kV/Ás	Capacitive Coupling	0.154 in	3.9 mm	3000 VAC
Texas Instruments ISO7741FEDWQ1	Unidirectional	4	5.5 V	2.25 V			3	1	0.295 in	16-SOIC	7.5 mm	100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SOIC	2.4 ns	2.4 ns			85 kV/Ás	Capacitive Coupling								AEC-Q100	Automotive	16.5 ns	16.5 ns
Texas Instruments ISO7741DW	Unidirectional	4	5.5 V	2.25 V	-55 °C	125 °C	3	1	0.295 in	16-SOIC	7.5 mm	100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SOIC	2.4 ns	2.4 ns	16 ns	16 ns	85 kV/Ás	Capacitive Coupling
Texas Instruments ISO7741QDWQ1	Unidirectional	4	5.5 V	2.25 V	-40 °C	125 °C	3	1	0.295 in	16-SOIC	7.5 mm	100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SOIC	2.4 ns	2.4 ns	16 ns	16 ns	40 kV/µs	Capacitive Coupling								AEC-Q100	Automotive
Texas Instruments ISO7741FQDWRQ1	Unidirectional	4	5.5 V	2.25 V	-40 °C	125 °C	3	1	0.295 in	16-SOIC	7.5 mm	100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SOIC	2.4 ns	2.4 ns	16 ns	16 ns	40 kV/µs	Capacitive Coupling								AEC-Q100	Automotive
Texas Instruments ISO7741DBQ	Unidirectional	4	5.5 V	2.25 V	-55 °C	125 °C	3	1		16-SSOP		100 Mbps	Surface Mount	General Purpose	4.9 ns	16-SSOP	2.4 ns	2.4 ns	16 ns	16 ns	85 kV/Ás	Capacitive Coupling	0.154 in	3.9 mm	2500 Vrms

Catalog

Automotive Grade 0, high-speed, robust-EMC quad-channel digital isolator

Key Features

• Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature Grade 1: –40°C to 125°C ambient operating temperatureFunctional Safety-CapableDocumentation available to aid functional safety system design:ISO7740-Q1,ISO7741-Q1,ISO7742-Q1100Mbps data rateRobust isolation barrier:>30-year projected lifetime at 1500VRMS working voltageUp to 5700VRMS isolation ratingUp to 12.8kV surge capability±100kV/µs typical CMTIWide supply range: 2.25V to 5.5V2.25V to 5.5V level translationDefault output high (ISO774x) and low (ISO774xF) optionsLow power consumption, typical 1.5mA per channel at 1MbpsLow propagation delay: 10.7ns typical (5V Supplies)Robust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8kV IEC 61000-4-2 contact discharge protection across isolation barrierLow emissionsExtra-wide SOIC (DWW-16), wide-SOIC (DW-16) and QSOP (DBQ-16) package optionsSafety-related certifications:DIN EN IEC 60747-17 (VDE 0884-17)UL 1577 component recognition programIEC 61010-1, IEC 62368-1, IEC 60601-1, and GB 4943.1 certificationsQualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature Grade 1: –40°C to 125°C ambient operating temperatureFunctional Safety-CapableDocumentation available to aid functional safety system design:ISO7740-Q1,ISO7741-Q1,ISO7742-Q1100Mbps data rateRobust isolation barrier:>30-year projected lifetime at 1500VRMS working voltageUp to 5700VRMS isolation ratingUp to 12.8kV surge capability±100kV/µs typical CMTIWide supply range: 2.25V to 5.5V2.25V to 5.5V level translationDefault output high (ISO774x) and low (ISO774xF) optionsLow power consumption, typical 1.5mA per channel at 1MbpsLow propagation delay: 10.7ns typical (5V Supplies)Robust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8kV IEC 61000-4-2 contact discharge protection across isolation barrierLow emissionsExtra-wide SOIC (DWW-16), wide-SOIC (DW-16) and QSOP (DBQ-16) package optionsSafety-related certifications:DIN EN IEC 60747-17 (VDE 0884-17)UL 1577 component recognition programIEC 61010-1, IEC 62368-1, IEC 60601-1, and GB 4943.1 certifications

Description

The ISO7741E-Q1 automotive device is a grade 0, high-performance, quad-channel digital isolator with 5000VRMS isolation ratings per UL 1577. This device has reinforced insulation ratings according to VDE, CSA, TUV and CQC. With a high temperature range of up to 150°C, the device is designed for applications like belt starter generators, water, pumps, cooling fans, soot sensors, and more which can experience ambient temperatures greater than 125°C. The ISO7741E-Q1 device provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. This device comes with enable pins which can be used to put the respective outputs in high impedance for multi-controller driving applications and to reduce power consumption. The ISO7741E-Q1 device has three forward and one reverse-direction channels. If the input power or signal is lost, default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details. Used in conjunction with isolated power supplies, these devices help prevent noise currents on data buses, such as CAN, or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through remarkable chip design and layout techniques, electromagnetic compatibility of the ISO7741E-Q1 device is significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO7741E-Q1 device is available in 16-pin SOIC package. The ISO7741E-Q1 automotive device is a grade 0, high-performance, quad-channel digital isolator with 5000VRMS isolation ratings per UL 1577. This device has reinforced insulation ratings according to VDE, CSA, TUV and CQC. With a high temperature range of up to 150°C, the device is designed for applications like belt starter generators, water, pumps, cooling fans, soot sensors, and more which can experience ambient temperatures greater than 125°C. The ISO7741E-Q1 device provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. This device comes with enable pins which can be used to put the respective outputs in high impedance for multi-controller driving applications and to reduce power consumption. The ISO7741E-Q1 device has three forward and one reverse-direction channels. If the input power or signal is lost, default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details. Used in conjunction with isolated power supplies, these devices help prevent noise currents on data buses, such as CAN, or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through remarkable chip design and layout techniques, electromagnetic compatibility of the ISO7741E-Q1 device is significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO7741E-Q1 device is available in 16-pin SOIC package.
