Z1210C Series
Manufacturer: KEMET
Beta
⌘K

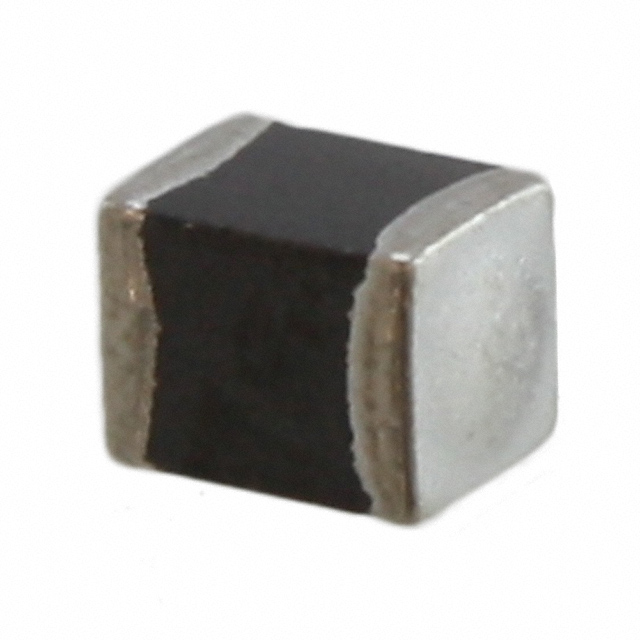

FERRITE BEAD 2K OHM 1210 1LN
| Part | Height (Max) | Height (Max) [Max] [z] | Number of Lines | Package / Case | Package / Case | Filter Type | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) (Max) [Max] | Current Rating (Max) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Impedance @ Frequency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2.8 mm | 0.11 in | 1 | 1210 | 3225 Metric | Power Line | 125 °C | -40 C | 130 mOhm | 1.2 A | 2.5 mm | 0.098 in | 3.2 mm | 0.126 " | 2 kOhms | Surface Mount |
