09400060 Series

Manufacturer: HARTING

Catalog

HAN 6 HPR HOOD TOP ENTRY PG 21 SCREW LOC ROHS COMPLIANT: NA

Part	Housing Material	Housing Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Thread Size	Size	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Finish	Connector Type	Features
HARTING 09400060412	Aluminum Die Cast	Black	58 mm	3.937 "	2.283 in	132 mm	5.197 "	100 mm	PG21	6B	Screw Locks on Hood	125 °C	-40 C	Top Entry	Powder Coated	Hood
HARTING 09400060513	Aluminum Die Cast	Black	58 mm	3.957 in	2.283 in	132 mm	5.197 "	100.5 mm	PG29	6B	Screw Locks on Hood	125 °C	-40 C	Side Entry	Powder Coated	Hood
HARTING 09400060502	Aluminum Die Cast	Black	58 mm	3.957 in	2.283 in	132 mm	5.197 "	100.5 mm	PG21	6B	Screw Locks on Hood	125 °C	-40 C	Side Entry	Powder Coated	Hood

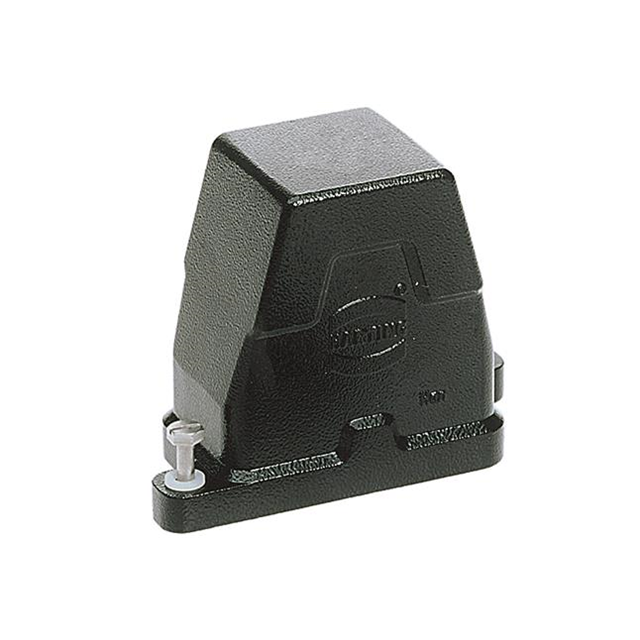

HARTING 09400060811	Aluminum Die Cast	Black	58 mm	3.957 in	2.283 in	132 mm	5.197 "	100.5 mm		6B	Screw Locks on Hood	125 °C	-40 C	Bottom Entry	Powder Coated	Hood

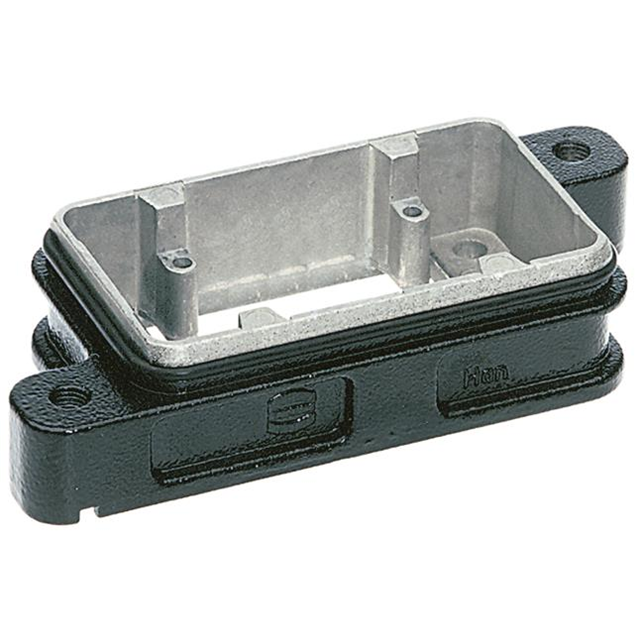

HARTING 09400060314	Aluminum Die Cast	Black	58 mm	1.138 "	2.283 in	132 mm	5.197 "	28.9 mm		6B	Screw Locks on Hood	125 °C	-40 C	Bottom Entry	Powder Coated	Base - Panel Mount	Corrosion Resistant

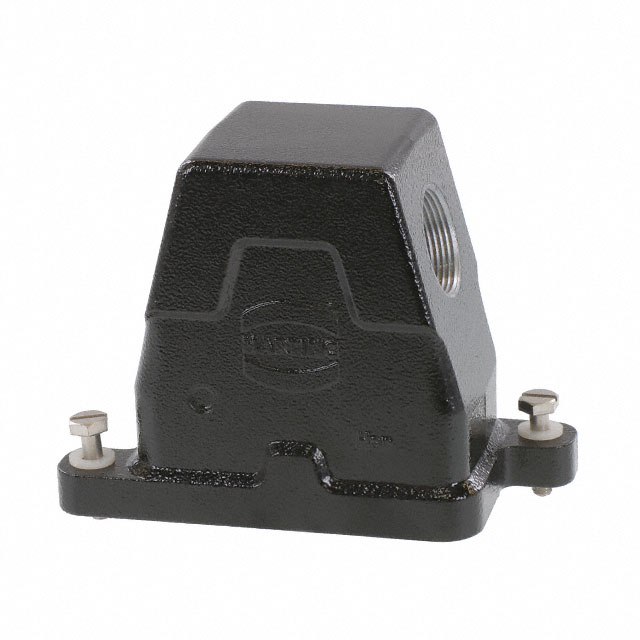

HARTING 09400060512	Aluminum Die Cast	Black	58 mm	3.957 in	2.283 in	132 mm	5.197 "	100.5 mm	PG21	6B	Screw Locks on Hood	125 °C	-40 C	Side Entry	Powder Coated	Hood
HARTING 09400060413	Aluminum Die Cast	Black	58 mm	3.937 "	2.283 in	132 mm	5.197 "	100 mm	PG29	6B	Screw Locks on Hood	125 °C	-40 C	Top Entry	Powder Coated	Hood
HARTING 09400060317	Aluminum Die Cast	Black	58 mm	1.138 "	2.283 in	132 mm	5.197 "	28.9 mm		6B	Screw Locks on Hood	125 °C	-40 C	Bottom Entry	Powder Coated	Base - Panel Mount	Cover
HARTING 09400060401	Aluminum Die Cast	Black	58 mm	3.937 "	2.283 in	132 mm	5.197 "	100 mm	PG16	6B	Screw Locks on Hood	125 °C	-40 C	Top Entry	Powder Coated	Hood
