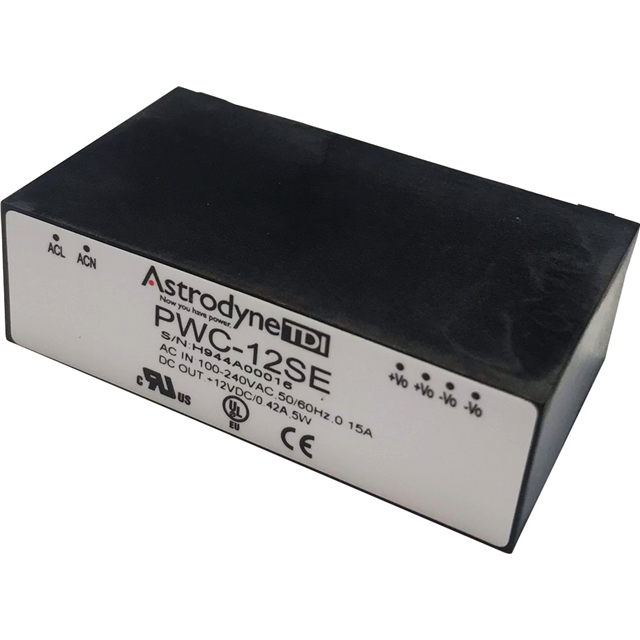

PWC-12 Series
Manufacturer: Astrodyne TDI
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Line Regulation | Load Regulation | Type | Efficiency | Features | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Number of Outputs | Applications | Package / Case | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Output 1 | Standard Number | Load Regulation | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Astrodyne TDI | 0.5 % | 0.5 % | Enclosed | 73 % | Universal Input | -25 °C | 65 °C | 420 mA | cURus UL | 264 VAC | 90 VAC | 5 W | 1 | ITE (Commercial) Medical | 6-SIP Module | Through Hole | 31.5 mm | 1.24 " | 2.05 in | 52.1 mm | 0.63 " | 16 mm | 12 V | 60601-1 60950-1 | |||
 Astrodyne TDI | 0.5 % | Enclosed | 73 % | Universal Input | -25 °C | 65 °C | 420 mA | CE cURus UL | 264 VAC | 90 VAC | 5 W | 1 | ITE (Commercial) | 4-DIP Module | Through Hole | 0.6 " | 2 in | 50.8 mm | 1 " | 12 V | ±1% | 15.2 mm | 25.4 mm | ||||
 Astrodyne TDI | 0.5 % | 0.5 % | Open Frame | 73 % | Universal Input | -25 °C | 65 °C | 420 mA | cURus UL | 264 VAC | 90 VAC | 5 W | 1 | ITE (Commercial) Medical | 6-SIP Module | Through Hole | 1.12 " | 1.93 in | 49 mm | 0.51 in | 12 V | 60601-1 60950-1 | 28.5 mm | 13 mm |
