0340-0 Series

Catalog

CONN PIN RCPT .032-.046 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Material	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0340-0-15-01-34-01-10-0	-55 C	125 °C	0.24 in	6.1 mm	Beryllium Copper	No Tail	200 Áin	5.08 Ám	Solder	0.087 in	2.21 mm	0.2 in	5.08 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Tin-Lead	0.12 in	3.05 mm	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0340-0-15-01-34-14-10-0	-55 C	125 °C	0.24 in	6.1 mm	Beryllium Copper	No Tail	10 Áin	0.25 Ám	Solder	0.087 in	2.21 mm	0.2 in	5.08 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.12 in	3.05 mm	1.63 mm	0.064 in

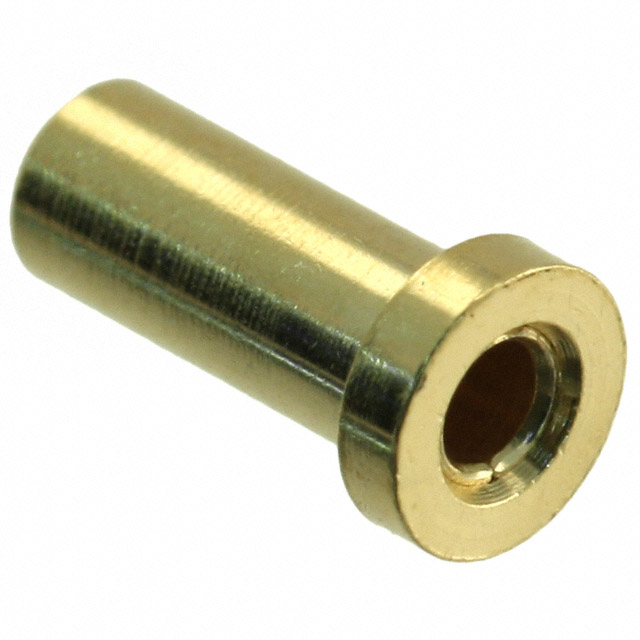

Mill-Max Manufacturing Corp. 0340-0-15-15-34-27-10-0	-55 C	125 °C	0.24 in	6.1 mm	Beryllium Copper	No Tail	30 Áin	0.76 Ám	Solder	0.087 in	2.21 mm	0.2 in	5.08 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Gold	0.12 in	3.05 mm	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0340-0-15-80-34-80-10-0	-55 C	125 °C	0.24 in	6.1 mm	Beryllium Copper	No Tail	200 Áin	5.08 Ám	Solder	0.087 in	2.21 mm	0.2 in	5.08 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	Tin	0.12 in	3.05 mm	1.63 mm	0.064 in
