PK18 Series
Manufacturer: Panduit Corp
Beta
⌘K

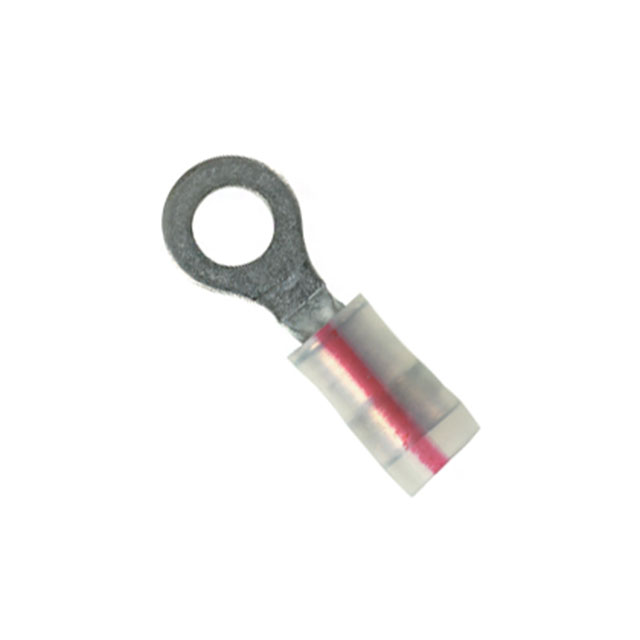

CONN RING CIRC 16-22AWG #1/4
| Part | Insulation Diameter | Insulation Diameter | Material - Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Material | Terminal Type | Color | Termination | Contact Finish | Thickness | Thickness | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.145 in | 3.68 mm | Polyvinylidene Fluoride (PVDF) | 0.46 in | 11.68 mm | Copper | Circular | Natural Red Stripe | Crimp | Tin | 0.76 mm | 0.03 in | Free Hanging (In-Line) | 16 AWG | 22 AWG | 27.94 mm | 1.1 in | 0.25 Stud | Insulated | Serrated Termination |
Panduit Corp | 0.145 in | 3.68 mm | Polyvinylidene Fluoride (PVDF) | 0.25 " | 6.35 mm | Copper | Circular | Natural Red Stripe | Crimp | Tin | 0.76 mm | 0.03 in | Free Hanging (In-Line) | 16 AWG | 22 AWG | 20.32 mm | 0.8 " | 6 Stud | Insulated | Serrated Termination |
Panduit Corp | 0.145 in | 3.68 mm | Polyvinylidene Fluoride (PVDF) | 0.25 " | 6.35 mm | Copper | Circular | Natural Red Stripe | Crimp | Tin | 0.76 mm | 0.03 in | Free Hanging (In-Line) | 16 AWG | 22 AWG | 20.32 mm | 0.8 " | 4 Stud | Insulated | Serrated Termination |
