HSCSAAN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 0.36PSID 0.19" 2.97V 4SIP

Part	Operating Pressure	Operating Pressure	Mounting Type	Supplier Device Package	Termination Style	Package / Case	Maximum Pressure	Maximum Pressure	Port Style	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Accuracy	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [x]	Operating Pressure [x]
Honeywell Sensing and Productivity Solutions HSCSAAN010NDAA3	2.49 kPa	0.36 PSI	Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides	10.84 PSI	74.75 kPa	Barbed	Differential	3.27 V	3.33 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.33 V	2.97 V

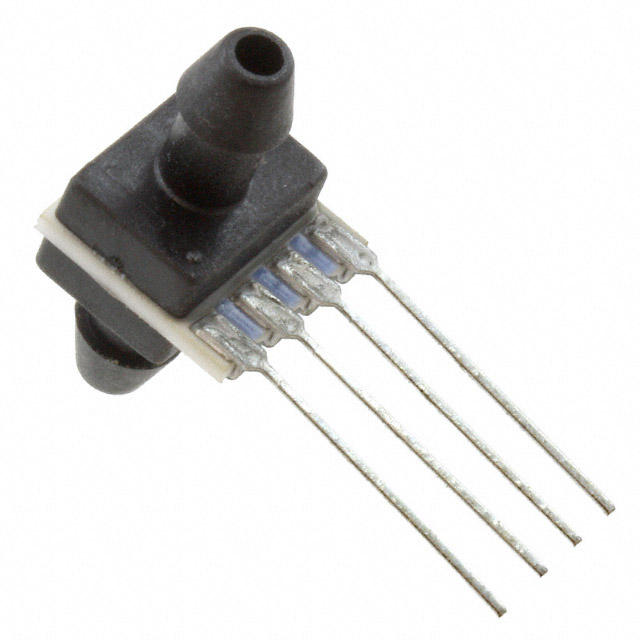

Honeywell Sensing and Productivity Solutions HSCSAAN001PGAA5	6.89 kPa	1 PSI	Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides			Barbed	Vented Gauge	4.75 V	5.25 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.5 V	4.5 V	10 PSI	68.95 kPa
Honeywell Sensing and Productivity Solutions HSCSAAN160MDAA5	16 kPa	2.32 PSI	Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides	20.31 PSI	140 kPa	Barbed	Differential	4.75 V	5.25 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSAAN010NDAA5	2.49 kPa	0.36 PSI	Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides	12.65 PSI	87.21 kPa	Barbed	Differential	4.95 V	5.05 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSAAN010MGAA5			Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides		9.79 PSI 67.5 kPa	Barbed	Vented Gauge	4.95 V	5.05 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.5 V	4.5 V			0.15 PSI	1 kPa
Honeywell Sensing and Productivity Solutions HSCSAAN001PDAA5			Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides	10 PSI	68.95 kPa	Barbed	Differential	4.75 V	5.25 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSAAN002NGAA5	0.5 kPa	0.07 PSI	Through Hole	4-SIP	PC Pin	4-SIP Dual Ports Opposite Sides	9.76 PSI	67.28 kPa	Barbed	Vented Gauge	4.95 V	5.05 V	Analog Voltage	0.25 %	Amplified Output Temperature Compensated	Board Mount	85 °C	-20 C	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCSAAN001ND2A3
Honeywell Sensing and Productivity Solutions HSCSAAN002NG5A3
