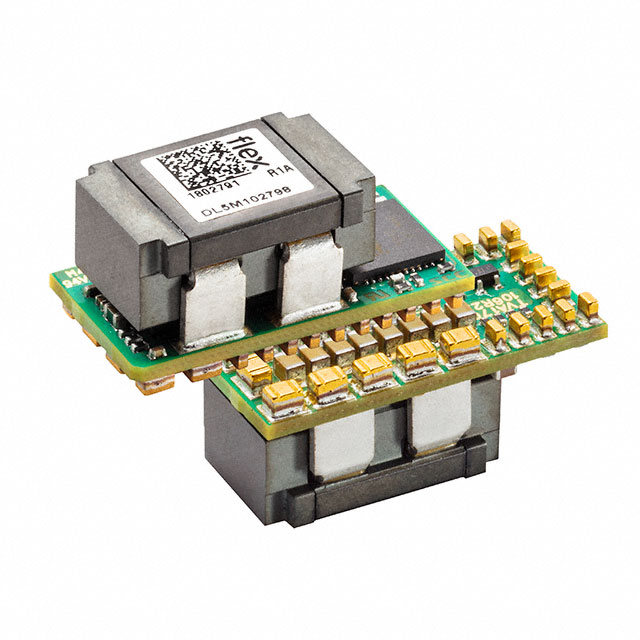

BMR469 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 0.6-5V 400W
| Part | Number of Outputs | Voltage - Input (Min) [Min] | Standard Number | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Approval Agency | Power (Watts) | Applications | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Efficiency | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 1 | 7.5 V | 62368-1 | Non-Isolated PoL Module Digital | 28-SMD Module | -40 °C | 125 °C | Adjustable Output PMBus™ Remote Sense | 0.46 in | 0.5 " | 1 in | 25.4 mm | 11.6 mm | 12.7 mm | Surface Mount | 80 A | 14 V | CB CSA IEC TUV UL | 400 W | ITE (Commercial) | 0.6 V | 5 V | 95.9 % | |
Flex Power Modules | 1 | 7.5 V | 62368-1 | Non-Isolated PoL Module Digital | 28-SMD Module | -40 °C | 125 °C | Adjustable Output PMBus™ Remote On/Off Remote Sense | 0.23 " | 0.57 " | 1 in | 25.4 mm | 5.8 mm | 14.5 mm | Surface Mount | 50 A | 14 V | CB CSA IEC TUV UL | 250 W | ITE (Commercial) | 0.6 V | 5 V | 94.4 % | Active High Enable |
