881002 Series

Catalog

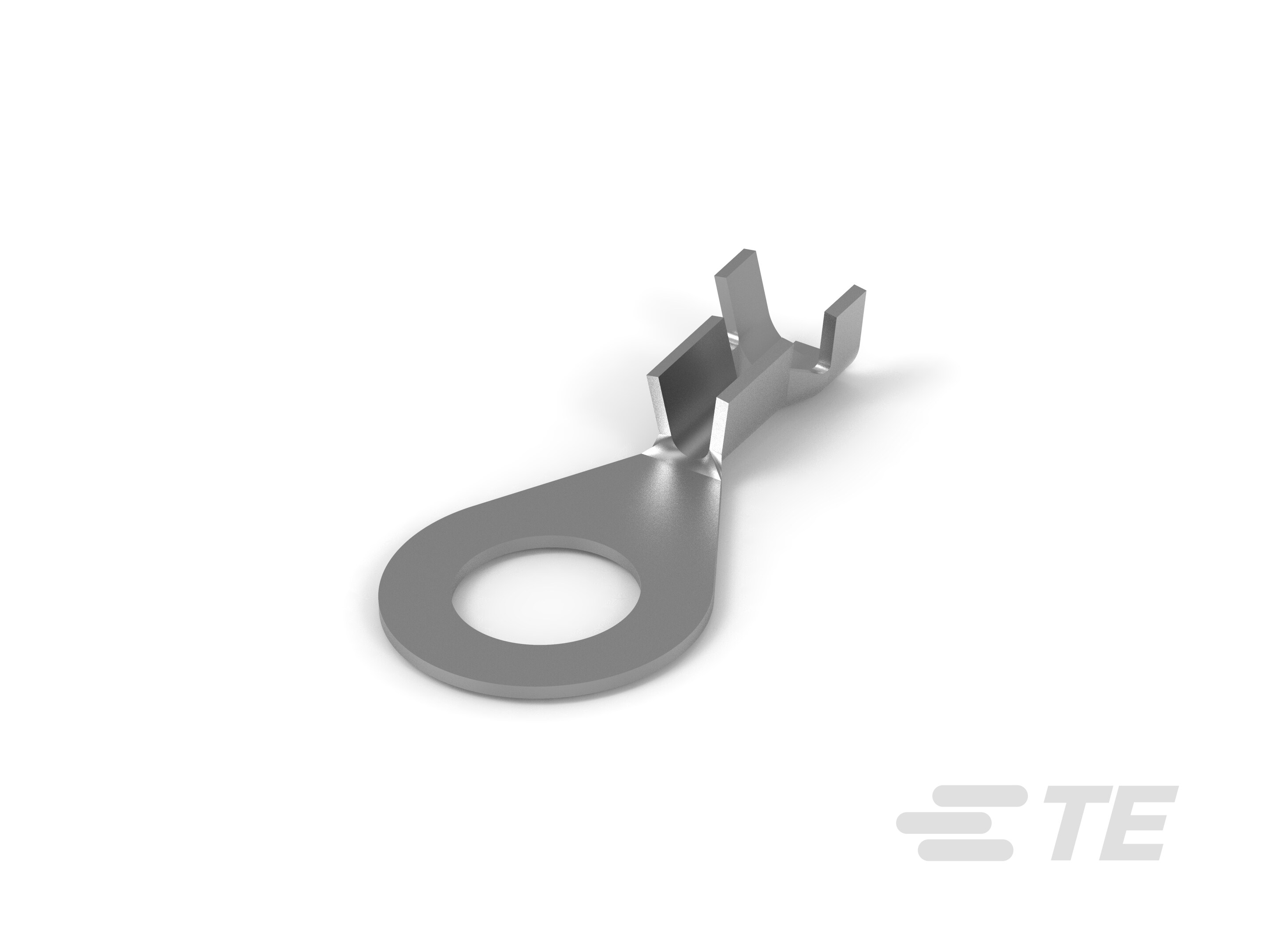

RING TONGUE 3.0-6.0 MM2 0.81X20.95 TPBR

Part	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Mounting Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Thickness	Thickness	Terminal Type	Contact Material	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 881002-2	5 mm	3.51 mm	0.138 in	0.197 in	Non-Insulated	18.5 mm	0.728 "	Tin	Free Hanging (In-Line)	Crimp	10 AWG	12 AWG	0.81 mm	0.032 in	Circular	Brass	35.7 mm	1.406 in
TE Connectivity AMP Connectors 881002-1	5 mm	3.51 mm	0.138 in	0.197 in	Non-Insulated	18.5 mm	0.728 "		Free Hanging (In-Line)	Crimp	10 AWG	12 AWG	0.81 mm	0.032 in	Circular	Brass	35.7 mm	1.406 in
