19301320 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 32B

Part	Lock Location	Housing Finish	Housing Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Connector Type	Size	Housing Material	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
HARTING 19301320541	Locking Clip (1) on Base Bottom	Powder Coated	Gray	147.8 mm	76 mm	43 mm	2.992 in	5.819 "	1.693 "	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Side Entry	Hood	L32B	Aluminum Die Cast
HARTING 19301320272	Locking Clip (2) on Base Bottom	Powder Coated	Gray	171 mm	80.8 mm	71.4 mm	3.181 in	6.732 in	2.811 "	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Side Entry Dual	Base - Box Mount	L32B	Aluminum Die Cast	Feed Through
HARTING 19301320528	Locking Clip (2) on Base Bottom	Powder Coated	Gray	147.8 mm	76 mm	43 mm	2.992 in	5.819 "	1.693 "	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Side Entry	Hood	L32B	Aluminum Die Cast
HARTING 19301320441	Locking Clip (1) on Base Bottom	Powder Coated	Gray	5.819 "	2.972 in	1.693 "				IP65 - Dust Tight Water Resistant	125 °C	-40 C	Top Entry	Hood	L32B	Aluminum Die Cast		43 mm	147.8 mm	75.5 mm

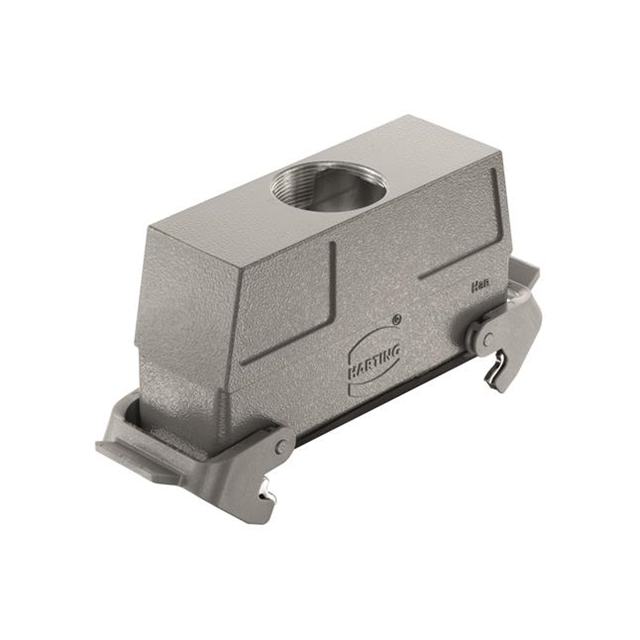

HARTING 19301320728	Locking Clip (2) on Hood	Powder Coated	Gray	147.8 mm	77.9 mm	43 mm	3.067 in	5.819 "	1.693 "	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Top Entry	Hood	L32B	Aluminum Die Cast	Cable to Cable

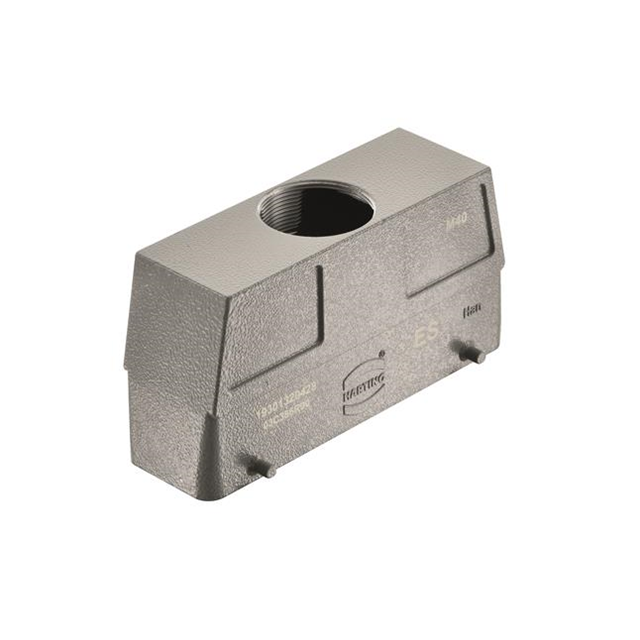

HARTING 19301320428	Locking Clip (2) on Base Bottom	Powder Coated	Gray	5.819 "	2.972 in	1.693 "				IP65 - Dust Tight Water Resistant	125 °C	-40 C	Top Entry	Hood	L32B	Aluminum Die Cast		43 mm	147.8 mm	75.5 mm
