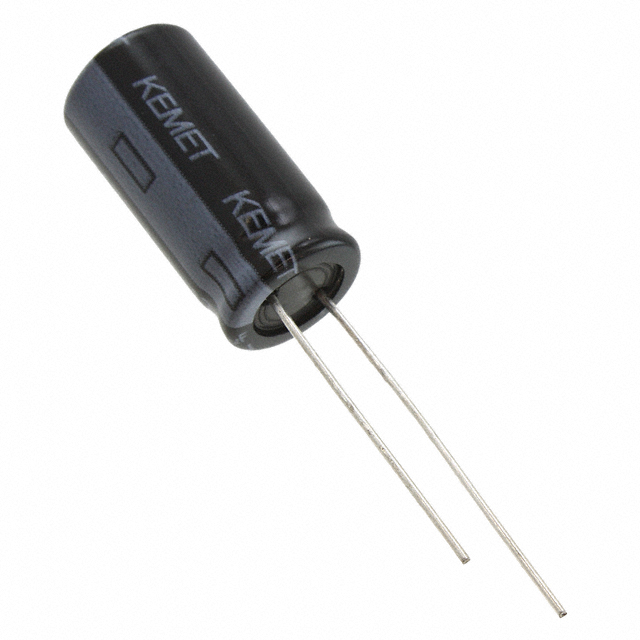

ESY477M Series

Manufacturer: KEMET

Catalog

CAP ALUM 470UF 20% 25V RADIAL TH

Part	Lifetime @ Temp.	Capacitance	Voltage - Rated	Polarization	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Applications	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ripple Current @ High Frequency	Tolerance	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
KEMET ESY477M025AG6AA	3000 Hrs	470 µF	25 VDC	Polar	Through Hole	0.315 in	8 mm	0.866 in	22 mm	41 mOhm	0.138 in	3.5 mm	General Purpose	937.5 mA	-40 C	105 ░C	Can Radial	1.25 A	20 %	41 mOhms
KEMET ESY477M025AH2AA	4000 Hrs	470 µF	25 VDC	Polar	Through Hole	0.394 in	10 mm			38 mOhm	0.197 "	5 mm	General Purpose	1.0725 A	-40 C	105 ░C	Can Radial	1.43 A	20 %	38 mOhms	0.669 "	17 mm
KEMET ESY477M016AG8AA	3000 Hrs	470 µF	16 V	Polar	Through Hole	0.315 in	8 mm			56 mOhm	0.138 in	3.5 mm	General Purpose	750 mA	-40 C	105 ░C	Can Radial	1 A	20 %	56 mOhms	0.709 in		18 mm
KEMET ESY477M035AH4AA	4000 Hrs	470 µF	35 V	Polar	Through Hole	0.394 in	10 mm	0.866 in	22 mm	26 mOhm	0.197 "	5 mm	General Purpose	1.365 A	-40 C	105 ░C	Can Radial	1.82 A	20 %	26 mOhms
