GBC05S Series

Catalog

CONN HEADER SMD R/A 5POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Style	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Shrouding	Insulation Material	Current Rating (Amps)	Contact Material	Contact Finish - Post	Insulation Color	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Termination	Connector Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Mounting Type
Sullins Connector Solutions GBC05SGSN-M89	2.54 µm	100 µin	Gold	Board to Board Cable	All	150 °C	-65 ░C	5	0.1 "	2.54 mm	UL94 V-0	Unshrouded	Nylon 9T Polyamide (PA9T)	3 A	Phosphor Bronze	Tin	Black	1	0.25 µm	10 µin	Push-Pull	Male Pin	Solder	Header Breakaway	Square	8.08 mm	0.318 in	3.56 mm	0.14 in	Right Angle Surface Mount

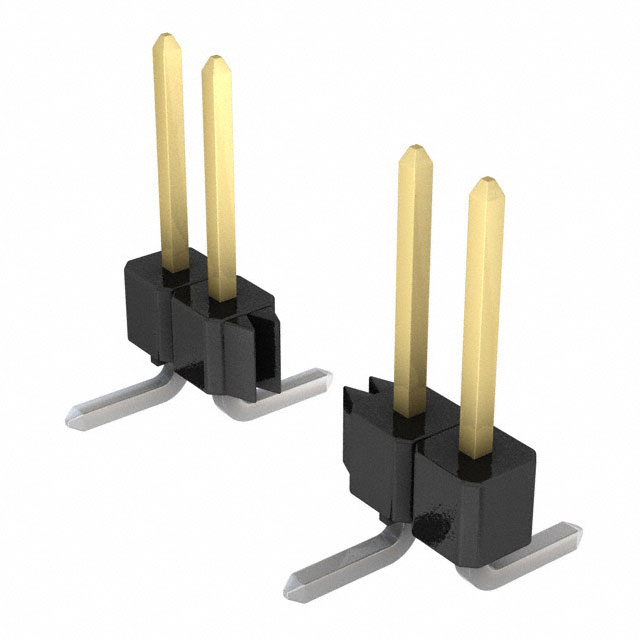

Sullins Connector Solutions GBC05SFBN-M30	2.54 µm	100 µin	Gold	Board to Board Cable	All	150 °C	-65 ░C	5	0.1 "	2.54 mm	UL94 V-0	Unshrouded	Nylon 9T Polyamide (PA9T)	3 A	Phosphor Bronze	Tin	Black	1	0.25 µm	10 µin	Push-Pull	Male Pin	Solder	Header Breakaway	Square	8.08 mm	0.318 in	2.54 mm	0.1 in	Surface Mount
Sullins Connector Solutions GBC05SBSN-M89	2.54 µm	100 µin	Gold	Board to Board Cable	All	150 °C	-65 ░C	5	0.1 "	2.54 mm	UL94 V-0	Unshrouded	Nylon 9T Polyamide (PA9T)	3 A	Phosphor Bronze	Tin	Black	1	0.25 µm	10 µin	Push-Pull	Male Pin	Solder	Header Breakaway	Square	5.84 mm	0.23 in	3.56 mm	0.14 in	Right Angle Surface Mount
