AA1K0C-P Series
Manufacturer: ODU
Beta
⌘K

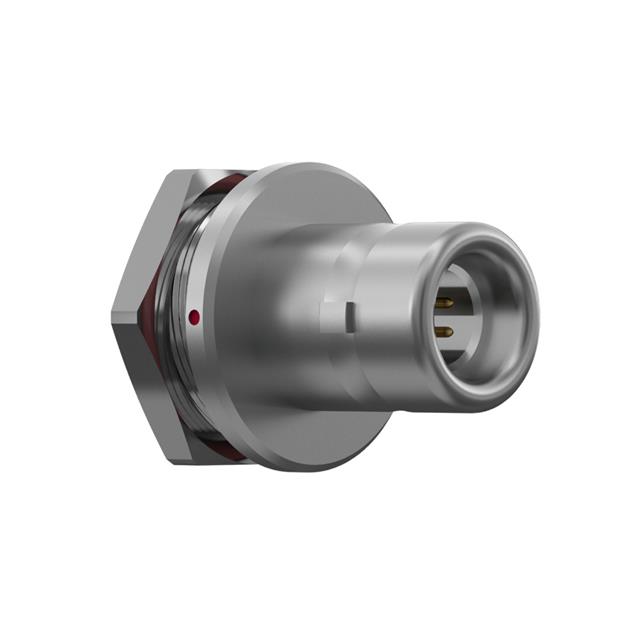

ODU MINI-SNAP PLUG,PANE LMOUNT,
| Part | Shielding | Color | Contact Material | Primary Material | Contact Finish - Mating | Voltage Rating | Current Rating (Amps) | Fastening Type | Applications | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shell Size - Insert | Shell Finish | Ingress Protection | Orientation | Number of Positions | Mounting Feature | Connector Type | Shell Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Shielded | Silver | Brass | Metal | Gold | 333 V | 7.5 A | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 120 °C | -40 C | Panel Mount | 1 | Chrome over Nickel | IP68 - Dust Tight Waterproof | 0 | 7 | Bulkhead - Rear Side Nut | Plug Male Pins | Brass | ||
Shielded | Silver | Brass | Metal | Gold | 500 V | 7.5 A | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 120 °C | -40 C | Panel Mount | 1 | Chrome over Nickel | IP68 - Dust Tight Waterproof | 0 | 4 | Bulkhead - Rear Side Nut | Plug Male Pins | Brass | Crimp | |
Shielded | Silver | Brass | Metal | Gold | 500 V | 7.5 A | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 120 °C | -40 C | Panel Mount | 1 | Chrome over Nickel | IP68 - Dust Tight Waterproof | 0 | 4 | Bulkhead - Rear Side Nut | Plug Male Pins | Brass | ||
Shielded | Silver | Brass | Metal | Gold | 500 V | 7.5 A | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 120 °C | -40 C | Panel Mount | 1 | Chrome over Nickel | IP68 - Dust Tight Waterproof | 0 | 4 | Bulkhead - Rear Side Nut | Plug Male Pins | Brass | Crimp | |
Shielded | Silver | Brass | Metal | Gold | 200 V | 4 A | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 120 °C | -40 C | Panel Mount | 1 | Chrome over Nickel | IP68 - Dust Tight Waterproof | 0 | 16 | Bulkhead - Rear Side Nut | Plug Male Pins | Brass | ||
Shielded | Silver | Brass | Metal | Gold | 333 V | 10 A | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 120 °C | -40 C | Panel Mount | 1 | Chrome over Nickel | IP68 - Dust Tight Waterproof | 0 | 5 | Bulkhead - Rear Side Nut | Plug Male Pins | Brass |
