SDN5 Series
Manufacturer: SolaHD
Beta
⌘K
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 120 W, 24 VDC, 5 A
| Part | Voltage - Output 1 | Power (Watts) | DC Voltage - Input (Min) [Min] | Current - Output (Max) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Applications | Efficiency | Approval Agency | Number of Outputs | Features | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | DC Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SolaHD | 24 V | 120 W | 550 V | 5 A | 50 mm | 4.36 in | 110.7 mm | 4.85 " | 1.97 in | 123.2 mm | 320 VAC | 540 VAC | Hazardous Locations Industrial ITE (Commercial) | 85 % | CE cULus cURus EAC | 1 | Adjustable Output IP20 | AC or DC | |||

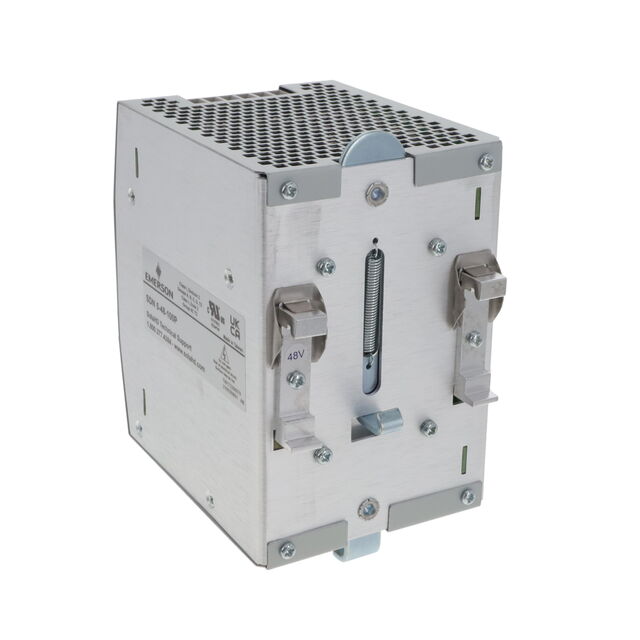

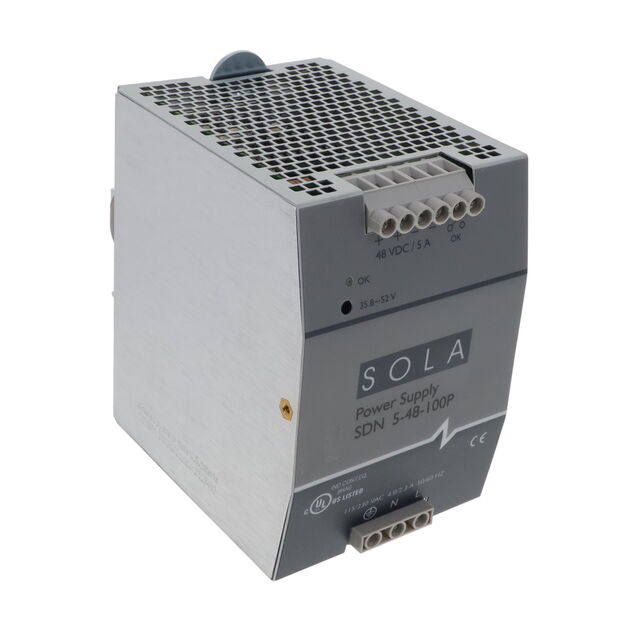

 SolaHD | 48 V | 240 Watts | 210 V | 5 A | 82 mm | 4.55 " | 115.6 mm | 4.88 in | 3.23 in | 124 mm | 85 VAC 176 VAC | 132 VAC 264 VAC | Hazardous Locations Industrial ITE (Commercial) | 88 % | CE cULus cURus | 1 | Adjustable Output IP20 | AC or DC | 70 °C | -10 °C | 375 V |
