LY2F-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 110V
| Part | Relay Type | Coil Current | Operate Time | Approval Agency | Termination Style | Must Release Voltage | Coil Type | Coil Resistance | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Switching Voltage | Mounting Type | Contact Rating (Current) | Contact Material | Release Time | Contact Form | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

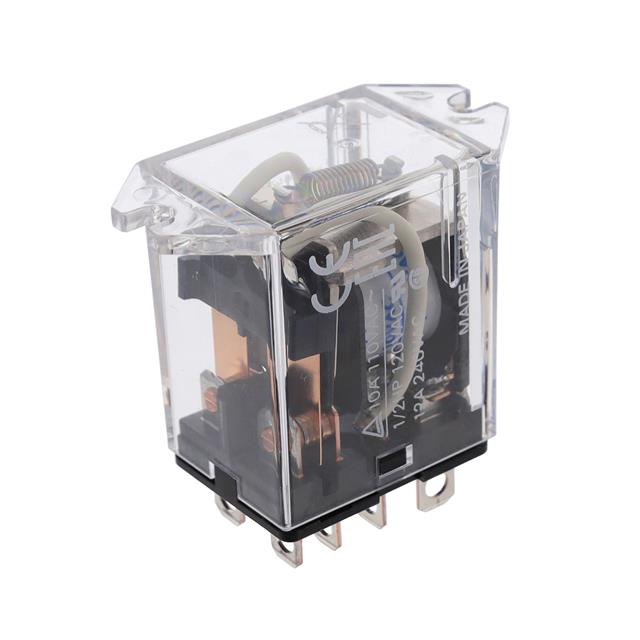

 Omron Electronics Inc-EMC Div | General Purpose | 11 mA | 25 ms | CE CSA TUV UR | Plug In | 33 VAC | Non Latching | 3.75 kOhms | 88 VAC/DC | 55 °C | -25 °C | 110 VAC/DC | 125 VDC 250 VAC | Chassis Mount | 10 A | Silver Alloy | 25 ms | DPDT (2 Form C) | 1250 W 2500 VA |

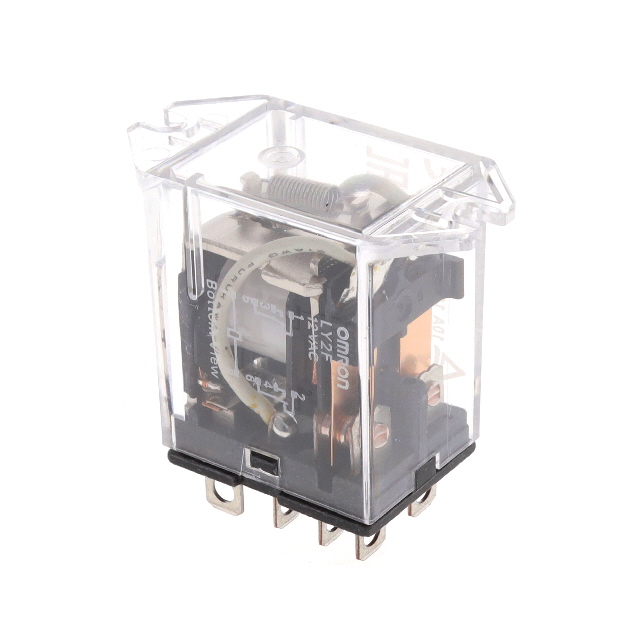

 Omron Electronics Inc-EMC Div | General Purpose | 91 mA | 25 ms | CE CSA TUV UR | Plug In | 3.6 VAC | Non Latching | 46 Ohms | 9.6 VAC/DC | 55 °C | -25 °C | 12 VAC/DC | 125 VDC 250 VAC | Chassis Mount | 10 A | Silver Alloy | 25 ms | DPDT (2 Form C) | 1250 W 2500 VA |
Omron Electronics Inc-EMC Div | General Purpose | 5.8 mA | 25 ms | CE CSA TUV UR | Plug In | 66 VAC | Non Latching | 12.95 kOhms | 176 VAC | 55 °C | -25 °C | 220 VAC/DC | 125 VDC 250 VAC | Chassis Mount | 10 A | Silver Alloy | 25 ms | DPDT (2 Form C) | 1250 W 2500 VA |
