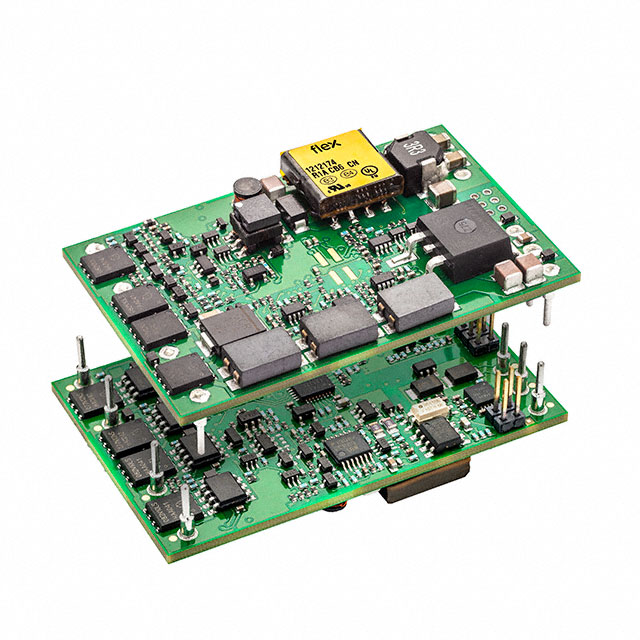

PIM482 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 0.85-7V 140W
| Part | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Voltage - Input (Max) [Max] | Efficiency | Type | Mounting Type | Package / Case | Applications | Power (Watts) | Supplier Device Package | Voltage - Input (Min) [Min] | Features | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 0.85 V | 7 V | 75 V | 99.2 % | Isolated Module Digital | Through Hole | Quarter Brick | ITE (Commercial) | 140 W | Quarter Brick | 36 V | Adjustable Output PMBus™ | 20 A | 2.28 " | 57.9 mm | 36.8 mm | 0.42 " | 10.7 mm | 1.45 in | 62368-1 | CB CSA IEC TUV UL | -40 °C | 110 °C | 1 | 2250 VDC |
