OSTYK21 Series

Catalog

CONN BARRIER STRIP 8CIRC 0.25"

Part	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Terminal Screw Finish	Mounting Type	Material - Insulation	Color	Bottom Termination	Current Rating (Amps)	Pitch	Pitch	Number of Circuits	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Top Termination	Voltage Rating	Terminal Block Type	Barrier Type	Number of Rows	Number of Wire Entries [custom]
On Shore Technology Inc. OSTYK21108030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	8	8	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
On Shore Technology Inc. OSTYK21107030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	7		22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1	7

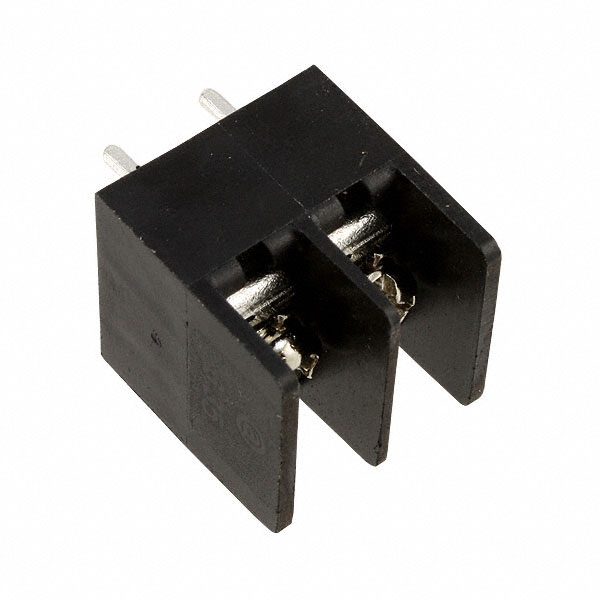

On Shore Technology Inc. OSTYK21102030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	2	2	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1

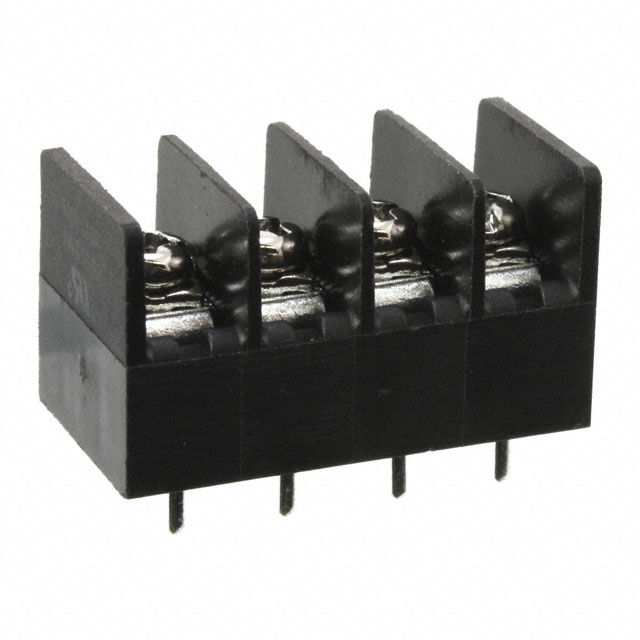

On Shore Technology Inc. OSTYK21104030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	4	4	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1

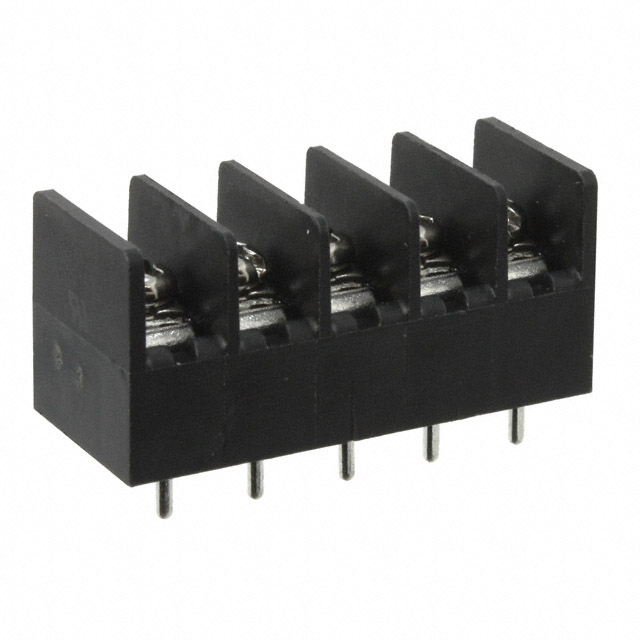

On Shore Technology Inc. OSTYK21105030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	5	5	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
On Shore Technology Inc. OSTYK21116030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	16	16	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
On Shore Technology Inc. OSTYK21118030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	18	18	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
On Shore Technology Inc. OSTYK21120030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	20	20	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
On Shore Technology Inc. OSTYK21119030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	19	19	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
On Shore Technology Inc. OSTYK21111030	Steel	-40 C	105 ░C	UL94 V-0	Nickel	Through Hole	Nylon 6/6 Polyamide (PA66)	Black	PC Pin	10 A	6.35 mm	0.25 in	11	11	22 AWG	17.5 AWG	Screws with Captive Plate	250 V	Barrier Block	2 Wall (Dual)	1
