PPPC142 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 28POS 0.1 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Voltage Rating	Contact Finish - Mating	Material Flammability Rating	Termination	Connector Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Rows [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Height [z]	Insulation Height	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

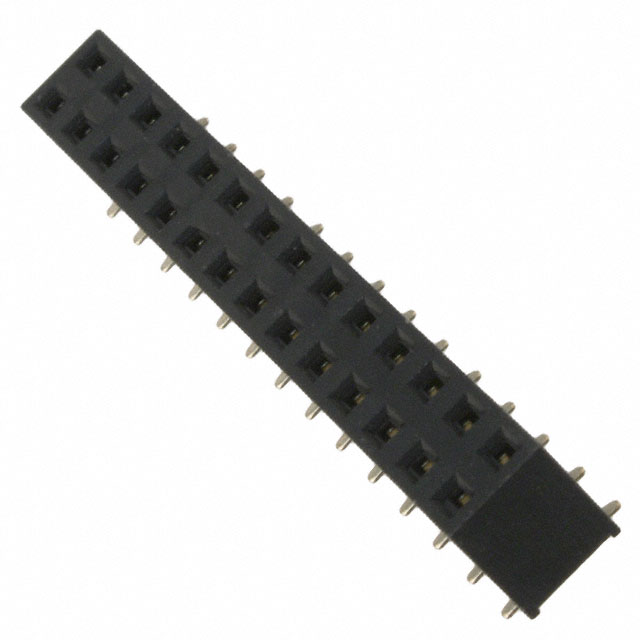

Sullins Connector Solutions PPPC142KFMS	Flash	Phosphor Bronze	Square	Polyester	250 V	Gold	UL94 V-0	Solder	Header	All	0.1 in	2.54 mm	28	Black	0.1 "	2.54 mm	3 A	2	Surface Mount	125 °C	-40 C	Push-Pull	0.299 "	7.6 mm	Female Socket	Gold	Flash

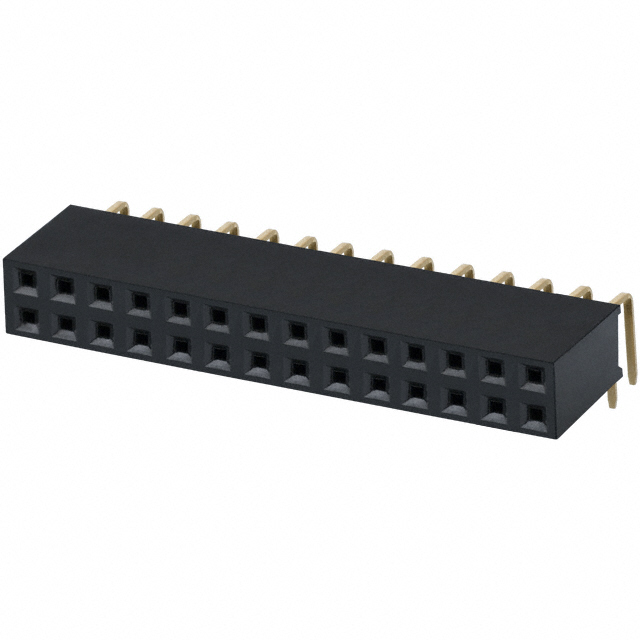

Sullins Connector Solutions PPPC142LJBN	Flash	Phosphor Bronze	Square	Polyester	250 V	Gold	UL94 V-0	Solder	Header	All	0.1 in	2.54 mm	28	Black	0.1 "	2.54 mm	3 A	2	Right Angle Through Hole	105 ░C	-40 C	Push-Pull	0.2 in		Female Socket	Gold	Flash	0.124 in	3.15 mm	5.08 mm

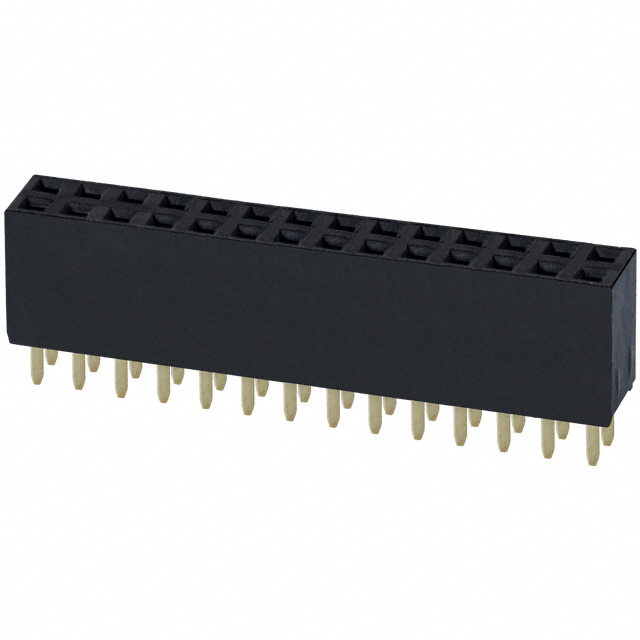

Sullins Connector Solutions PPPC142LFBN	Flash	Phosphor Bronze	Square	Polyester	250 V	Gold	UL94 V-0	Solder	Header	All	0.1 in	2.54 mm	28	Black	0.1 "	2.54 mm	3 A	2	Through Hole	105 ░C	-40 C	Push-Pull		8.51 mm	Female Socket	Gold	Flash				0.335 "	0.126 "	3.2 mm
Sullins Connector Solutions PPPC142LJBN-RC	Flash	Phosphor Bronze	Square	Polyester	250 V	Gold	UL94 V-0	Solder	Header	All	0.1 in	2.54 mm	28	Black	0.1 "	2.54 mm	3 A	2	Right Angle Through Hole	105 ░C	-40 C	Push-Pull	0.2 in		Female Socket	Gold	Flash	0.124 in	3.15 mm	5.08 mm
Sullins Connector Solutions PPPC142LFBN-RC	Flash	Phosphor Bronze	Square	Polyester	250 V	Gold	UL94 V-0	Solder	Header	All	0.1 in	2.54 mm	28	Black	0.1 "	2.54 mm	3 A	2	Through Hole	105 ░C	-40 C	Push-Pull		8.51 mm	Female Socket	Gold	Flash				0.335 "	0.126 "	3.2 mm
