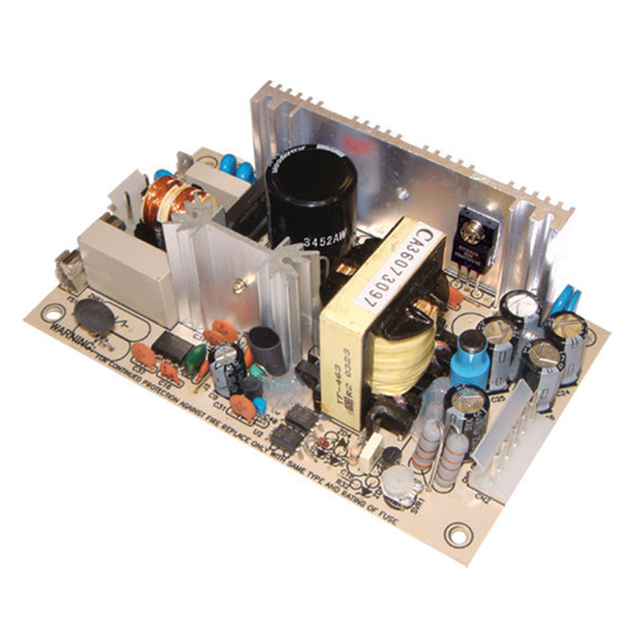

PT-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V +/-12V 64W
| Part | Minimum Load Required | Power (Watts) | Voltage - Isolation | Number of Outputs | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Type | Applications | Voltage - Output 2 | Current - Output 3 | Current - Output 2 | Current - Output 1 | Voltage - Output 1 | Features | Voltage - Output 3 | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 64 W | 3000 V | 3 | 5 " | 1.65 " | 76 mm | 42 mm | 2.99 in | 127 mm | 77 % | Open Frame | ITE (Commercial) | 12 V | 500 mA | 2.5 A | 5.5 A | 5 V | Adjustable Output Universal Input | -12 V | 264 VAC 370 VDC | 90 VAC 127 VDC | CB CE cURus TUV | -10 °C | 60 °C | Chassis Mount | |
MEAN WELL USA Inc. | 60 W | 3000 V | 3 | 5 " | 1.65 " | 76 mm | 42 mm | 2.99 in | 127 mm | 76 % | Open Frame | ITE (Commercial) | 12 V | 500 mA | 2.5 A | 5.5 A | 5 V | Adjustable Output Universal Input | -5 V | 264 VAC 370 VDC | 90 VAC 127 VDC | CB CE cURus TUV | -10 °C | 60 °C | Chassis Mount |
