3012-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

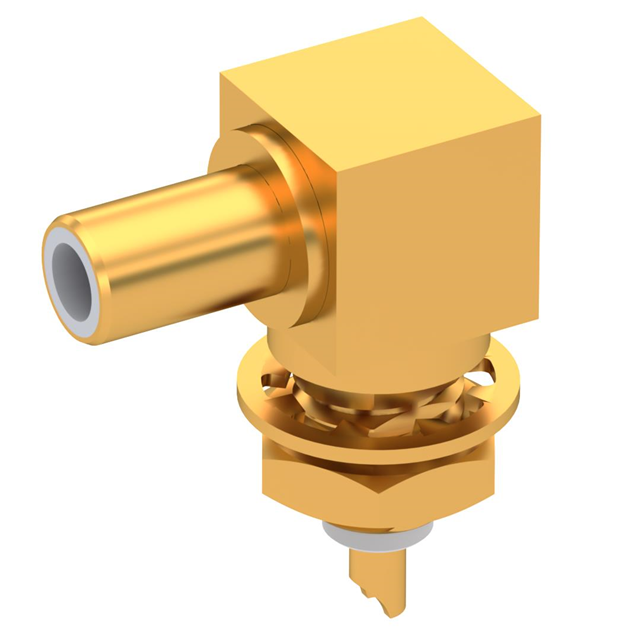

SLB / RIGHT ANGLE JACK RECEPTACL
| Part | Body Finish | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Mounting Feature | Housing Color | Fastening Type | Frequency - Max [Max] | Connector Type | Number of Ports | Connector Style | Mounting Type | Contact Termination | Impedance | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | 0.6 dB | -65 ░C | 165 °C | Brass | Bulkhead - Rear Side Nut | Gold | Snap-On | 4 GHz | Jack Male Pin | 1 | SLB | Panel Mount | Solder Cup | 50 Ohms | Solder |
