CS-4-22 Series

Catalog

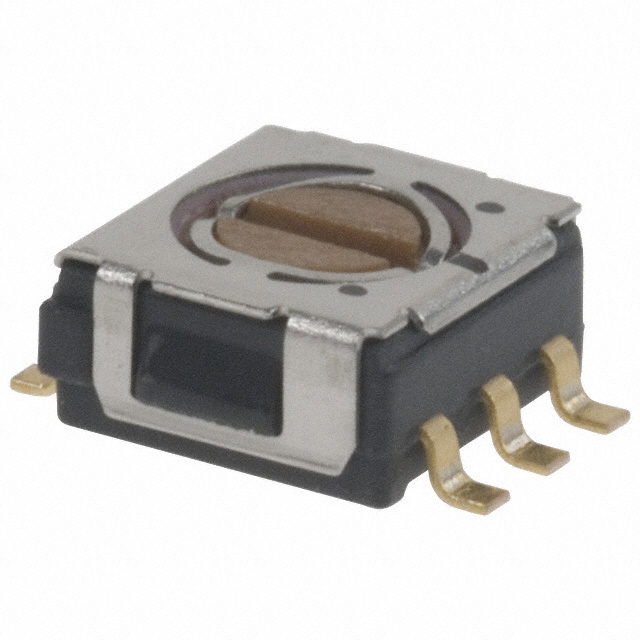

ROTARY SWITCH, 2 POSITION, 2 POLE, 45 °, 100 MA, 16 V, CS-4 SERIES

Part	Length [x]	Length [x]	Body Material	Electrical Life	Mounting Type	Actuator Type	Voltage Rating	Number of Positions	Pitch	Pitch	Termination Style	Height Above Board	Height Above Board [z]	Current Rating (Amps)	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Contact Finish	Contact Material
Nidec Components Corporation CS-4-22YB	5 mm	0.197 in	Epoxy	200 Cycles	Surface Mount	Rotary for Tool	16 VDC	2	0.051 in	1.3 mm	Gull Wing	2.3 mm	0.091 "	100 mA	Flush Recessed	-25 °C	70 °C	DPDT	Gold	Copper Alloy
Nidec Components Corporation CS-4-22YA	5 mm	0.197 in	Epoxy	200 Cycles	Surface Mount	Rotary for Tool	16 VDC	2	0.051 in	1.3 mm	J Lead	2.3 mm	0.091 "	100 mA	Flush Recessed	-25 °C	70 °C	DPDT	Gold	Copper Alloy
Nidec Components Corporation CS-4-22YTB	5 mm	0.197 in	Epoxy	200 Cycles	Surface Mount	Rotary for Tool	16 VDC	2	0.051 in	1.3 mm	Gull Wing	2.3 mm	0.091 "	100 mA	Flush Recessed	-25 °C	70 °C	DPDT	Gold	Copper Alloy
