PTC21 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 21POS 2.54MM

Part	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Contact Shape	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions	Mounting Type	Number of Rows	Fastening Type	Contact Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Finish - Post	Contact Material	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PTC21SBDN	3.56 mm	0.14 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	10.67 mm	0.42 in	Black	0.23 in	5.84 mm	21	Right Angle Through Hole	1	Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All
Sullins Connector Solutions PTC21DABN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	5.84 mm	0.23 "	Black	0.23 in	5.84 mm	42	Through Hole		Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	0.56 in	14.22 mm	0.1 in	2.54 mm	2
Sullins Connector Solutions PTC21DBBN			Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	5.84 mm	0.23 "	Black	0.23 in	5.84 mm	42	Right Angle Through Hole		Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All			0.1 in	2.54 mm	2	6.1 mm	0.24 in
Sullins Connector Solutions PTC21SACN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	8.13 mm	0.32 in	Black	0.23 in	5.84 mm	21	Through Hole	1	Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	0.65 in	16.51 mm

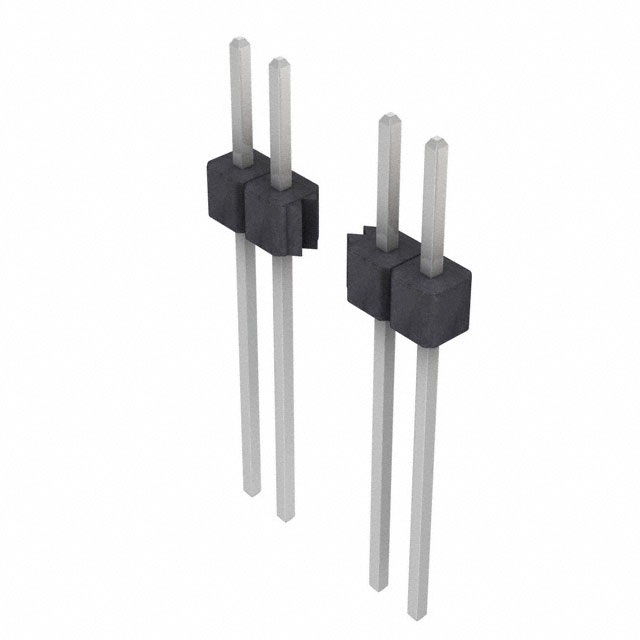

Sullins Connector Solutions PTC21SAFN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder			Black	0.23 in	5.84 mm	21	Through Hole	1	Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	0.95 in	24.13 mm						15.75 mm	0.62 "
Sullins Connector Solutions PTC21SFBN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	5.58 mm	0.22 in	Black	0.318 in	8.08 mm	21	Through Hole	1	Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	0.638 in	16.21 mm
Sullins Connector Solutions PTC21SFEN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	13.21 mm	0.52 in	Black	0.318 in	8.08 mm	21	Through Hole	1	Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	0.938 in	23.83 mm
Sullins Connector Solutions PTC21DAGN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	18.29 mm	0.72 "	Black	0.23 in	5.84 mm	42	Through Hole		Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	1.05 in	26.67 mm	0.1 in	2.54 mm	2

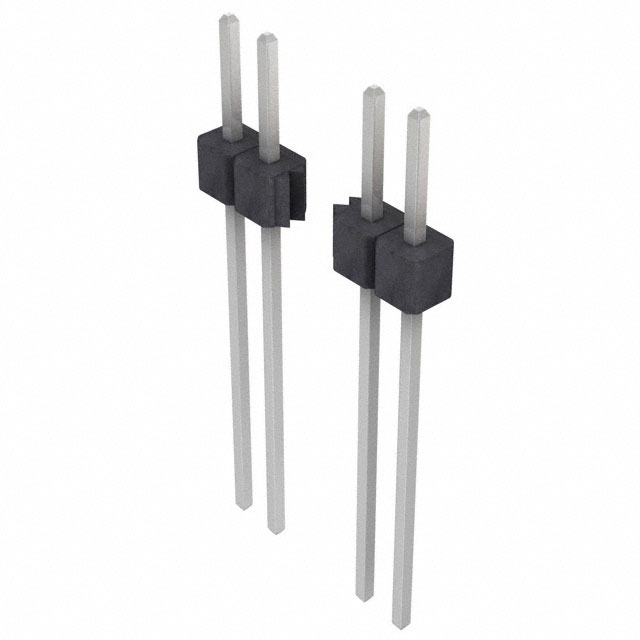

Sullins Connector Solutions PTC21SAGN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	18.29 mm	0.72 "	Black	0.23 in	5.84 mm	21	Through Hole	1	Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	1.05 in	26.67 mm
Sullins Connector Solutions PTC21DAEN	2.54 mm	0.1 in	Polyester Thermoplastic	3 A	Square	0.1 "	2.54 mm	UL94 V-0	Solder	13.21 mm	0.52 in	Black	0.23 in	5.84 mm	42	Through Hole		Push-Pull	Male Pin	Unshrouded	2.54 µm	100 µin	Header	Tin	Copper Alloy	Board to Board Cable	100 çin	2.54 çm	All	0.85 in	21.59 mm	0.1 in	2.54 mm	2
