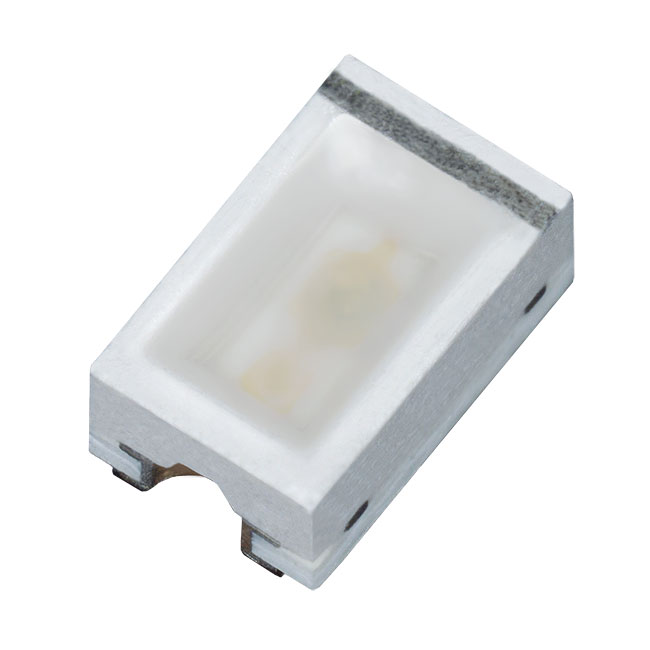

SML-M13 Series

Reflector type, Green Chip LED

Catalog

Reflector type, Green Chip LED

Part	Lens Size [x]	Lens Size [y]	Color	Configuration	Lens Transparency	Height (Max) [Max] [z]	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Test	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Wavelength - Dominant	Lens Style	Lens Color	Millicandela Rating
Rohm Semiconductor SML-M13PTT86	1.4 mm	0.85 mm	Green	Standard	Clear	0.9 mm	2012	0805	2.2 V	20 mA	0805	2 mm	1.25 mm	Surface Mount	560 nm	Rectangle with Flat Top	Colorless	16 mcd
Rohm Semiconductor SML-M13DTT86	1.4 mm	0.85 mm		Standard	Clear	0.9 mm	2012	0805	2 V	20 mA	0805	2 mm	1.25 mm	Surface Mount	605 nm	Rectangle with Flat Top	Colorless	200 mcd

Reflector type, Green Chip LED

SML-M13DT is reflector type chip LED. Die is located at the center of the package, achieving equivalent distribution of light emission.
