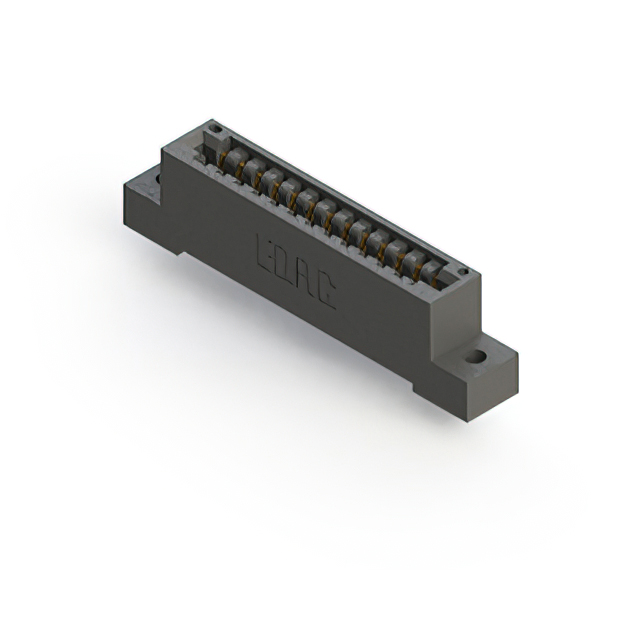

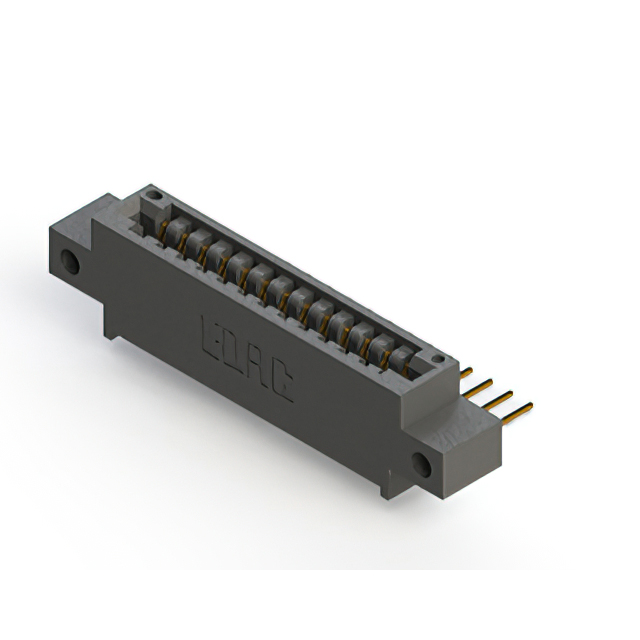

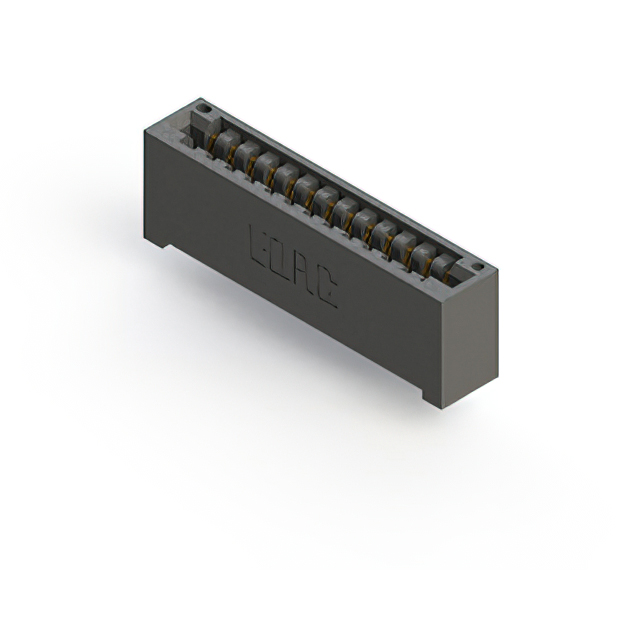

896-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 13POS 0.125
| Part | Material - Insulation | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Type | Gender | Termination | Read Out | Number of Positions | Pitch | Pitch | Card Type | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Solder Eyelet(s) | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Wire Wrap | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Solder | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Solder | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Wire Wrap | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Right Angle Through Hole | Cantilever | Female | Solder | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Right Angle Through Hole | Cantilever | Female | Solder | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Solder | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Wire Wrap | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 C | Through Hole | Cantilever | Female | Solder | Single | 13 | 3.18 mm | 0.125 in | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 13 | 0.25 Ám | 10 Áin | Black | Gold | Flush Mount M3 Threaded Insert Top Opening |
