MS3116F14 Series

Catalog

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 15 CONTACTS, SOLDER PIN

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Features	Number of Positions	Voltage Rating	Voltage Rating	Shell Material	Fastening Type	Color	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]

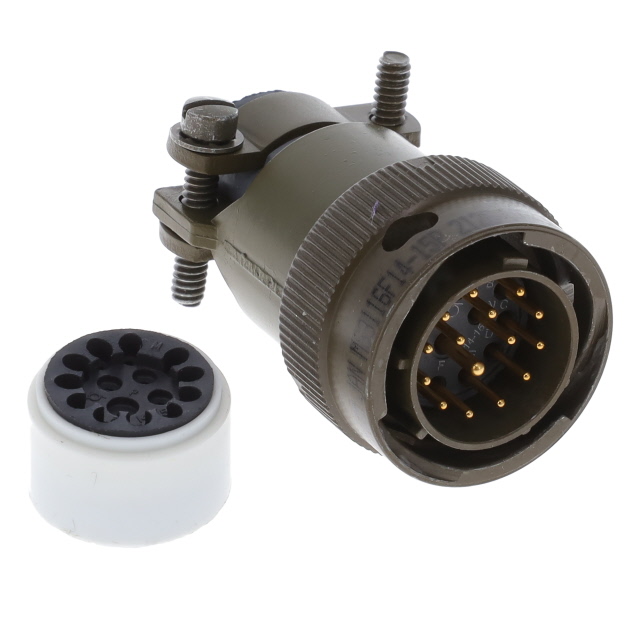

ITT Cannon, LLC MS3116F14-15P	50 µin	1.27 µm	7.5 A 13 A	Gold	Plug Male Pins	Metal	N (Normal)	-55 C	125 °C	Olive Drab Cadmium	Free Hanging (In-Line)	15	14	Environment Resistant	Strain Relief	15	600 VAC	850 VDC	Aluminum Alloy	Bayonet Lock	Olive Drab
ITT Cannon, LLC MS3116F14-19S	50 µin	1.27 µm	7.5 A	Gold	Plug Female Sockets	Metal	N (Normal)	-55 C	125 °C	Olive Drab Cadmium	Free Hanging (In-Line)			Environment Resistant	Strain Relief	19	600 VAC	850 VDC	Aluminum Alloy	Bayonet Lock	Olive Drab	19	14
ITT Cannon, LLC MS3116F14-12S	50 µin	1.27 µm	7.5 A 13 A	Gold	Plug Female Sockets	Metal	N (Normal)	-55 C	125 °C	Olive Drab Cadmium	Free Hanging (In-Line)	12	14	Environment Resistant	Strain Relief	12	600 VAC	850 VDC	Aluminum Alloy	Bayonet Lock	Olive Drab

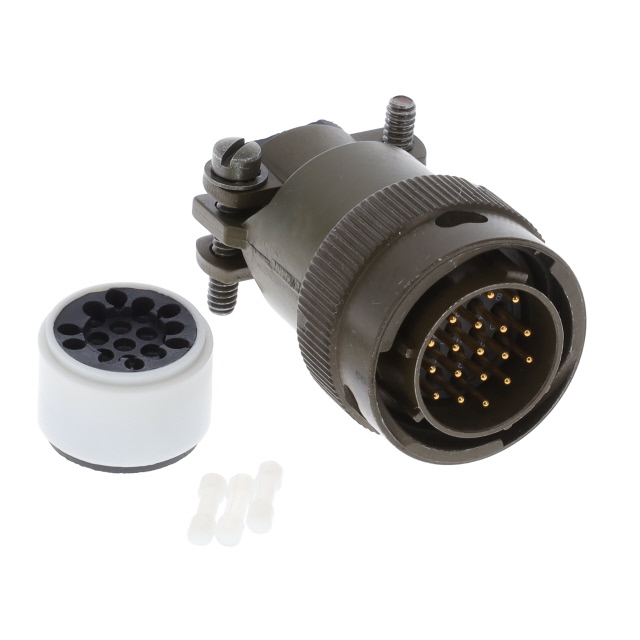

ITT Cannon, LLC MS3116F14-18P	50 µin	1.27 µm	7.5 A	Gold	Plug Male Pins	Metal	N (Normal)	-55 C	125 °C	Olive Drab Cadmium	Free Hanging (In-Line)			Environment Resistant	Strain Relief	18	600 VAC	850 VDC	Aluminum Alloy	Bayonet Lock	Olive Drab	18	14
ITT Cannon, LLC MS3116F14-12P	50 µin	1.27 µm	7.5 A 13 A	Gold	Plug Male Pins	Metal	N (Normal)	-55 C	125 °C	Olive Drab Cadmium	Free Hanging (In-Line)	12	14	Environment Resistant	Strain Relief	12	600 VAC	850 VDC	Aluminum Alloy	Bayonet Lock	Olive Drab
ITT Cannon, LLC MS3116F14-19PW	50 µin	1.27 µm	7.5 A	Gold	Plug Male Pins	Metal	W	-55 C	125 °C	Olive Drab Cadmium	Free Hanging (In-Line)			Environment Resistant	Strain Relief	19	600 VAC	850 VDC	Aluminum Alloy	Bayonet Lock	Olive Drab	19	14
