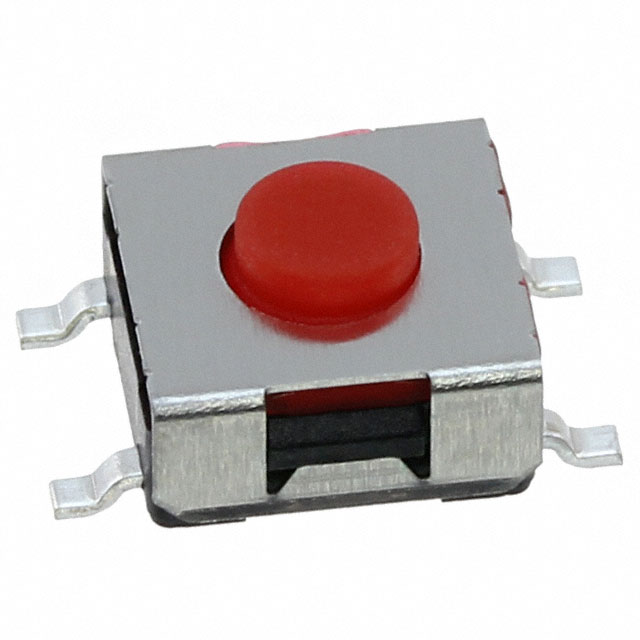

95CW06 Series

Catalog

PUSHBUTTON SWITCH,STRAIGHT,SPST,ON-OFF,SURFACE MOUNT TERMINAL

Part	Actuator Orientation	Mechanical Life	Contact Rating @ Voltage	Mounting Type	Switch Travel	Actuator Type	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Features	Termination Style	Outline [x]	Outline [y]	Illumination	Circuit	Switch Function	Actuator Height off PCB, Vertical	Operating Force
Grayhill Inc. 95CW06B1GWT	Top Actuated	100000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C	3.1 mm	Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom
Grayhill Inc. 95CW06E2JT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	5.2 mm	180 gf

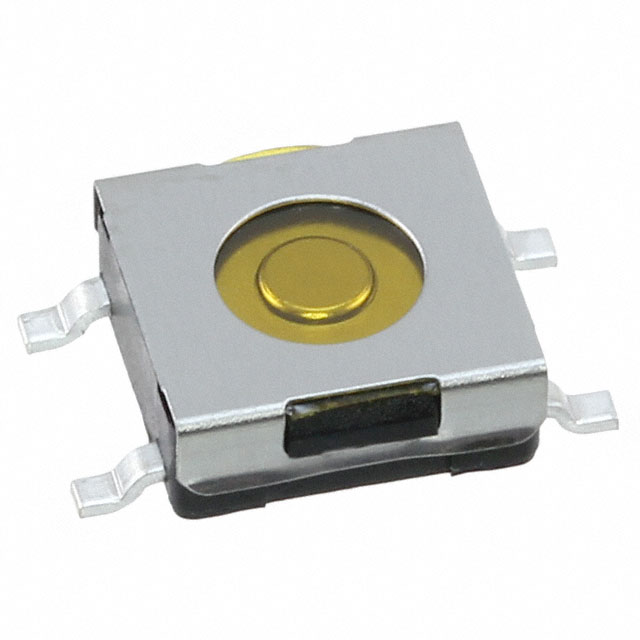

Grayhill Inc. 95CW06A1GWT	Top Actuated	100000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	2.3 mm
Grayhill Inc. 95CW06C3JRT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.5 mm	260 gf
Grayhill Inc. 95CW06D3GWT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.8 mm	260 gf
Grayhill Inc. 95CW06D4JT	Top Actuated		0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.8 mm	520 gf

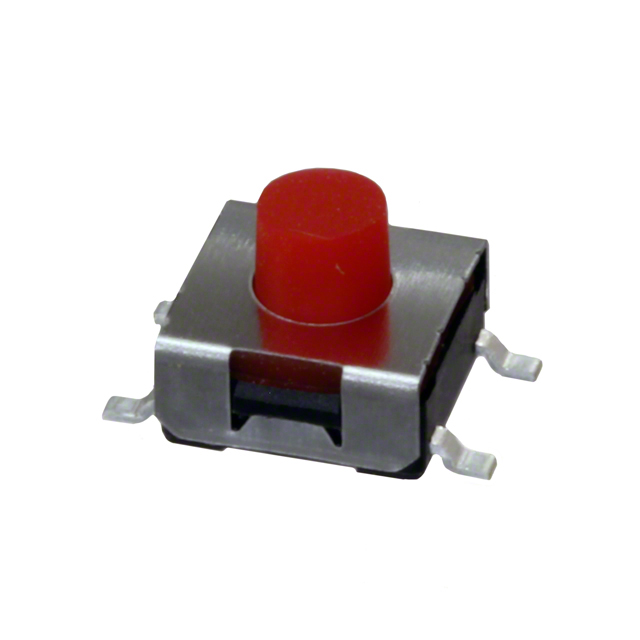

Grayhill Inc. 95CW06E3GWT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	5.2 mm	260 gf
Grayhill Inc. 95CW06D3JRT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.8 mm	260 gf
Grayhill Inc. 95CW06E3JT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	5.2 mm	260 gf
