0487015 Series

FUSE 420Vac/dc 5X20 FA 15A

Catalog

FUSE 420Vac/dc 5X20 FA 15A

Part	DC Cold Resistance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Melting I²t	Package / Case [y]	Package / Case	Package / Case [x]	Fuse Type	Breaking Capacity @ Rated Voltage

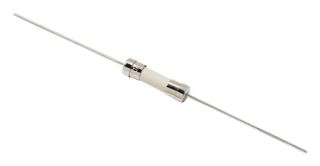

LITTELFUSE 0487015.MXEP	0.0075 Ohms	0.846 in	5.5 mm	0.217 in	21.5 mm	420 V	Through Hole	15 A	420 V	TUV UR	-55 C	125 °C	Fast Blow	190	20 mm	Axial	5 mm	Cartridge Ceramic	200 A 300 A
LITTELFUSE 0487015.MXP		0.787 "	5.2 mm	0.205 in	20 mm	420 V	Requires Holder	15 A	420 V	TUV UR	-55 C	125 °C	Fast Blow	190	20 mm		5 mm	Cartridge Ceramic	200 A 300 A

Catalog

FUSE 420Vac/dc 5X20 FA 15A

Description

487 series is the first fast-acting fuse with both AC and DC rating from the Littelfuse5X20mm fuse family. This fast-acting ceramic body fuse provides over-current protection for telecom power supplies and datacenter server power supplies where a high-voltage DC interrupting rating is required.
