7207 Series

Catalog

KEYPAD, 1 X 4, MATRIX, POLYMER, 50 MA, 24 V

Part	Operational Life	Approval Agency	Legend Type	Mounting Type	Illumination	Termination Style	Switch Type	Key Type	Legend Color	Number of Keys	Output Type	Key Color	Contact Rating @ Voltage	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination Voltage (Nominal)

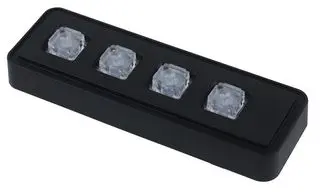

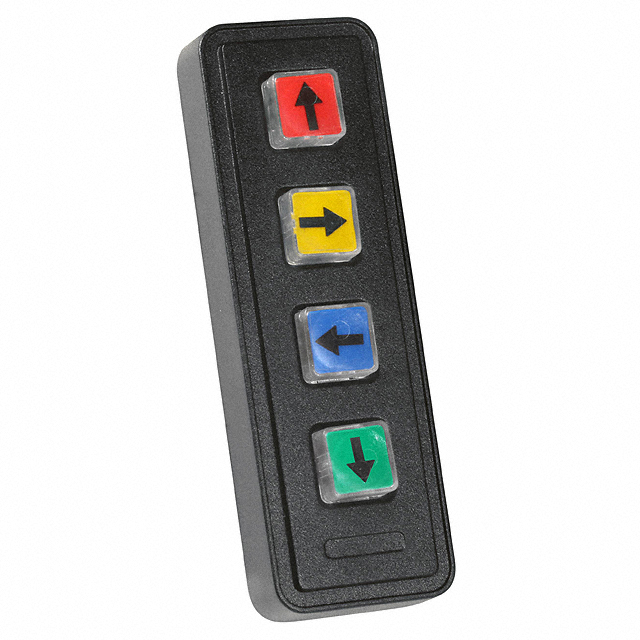

STORM INTERFACE 7207-0410203	2000000 Cycles	CE	Interchangeable	Panel Mount Front or Rear	Non-Illuminated	Pin Header	Conductive Rubber	Transparent Key Cap	Black	4	Matrix	Multiple	0.05 A 24 VDC	Customizable (Included)	-20 ░C	60 °C	IP65 - Dust Tight Water Resistant

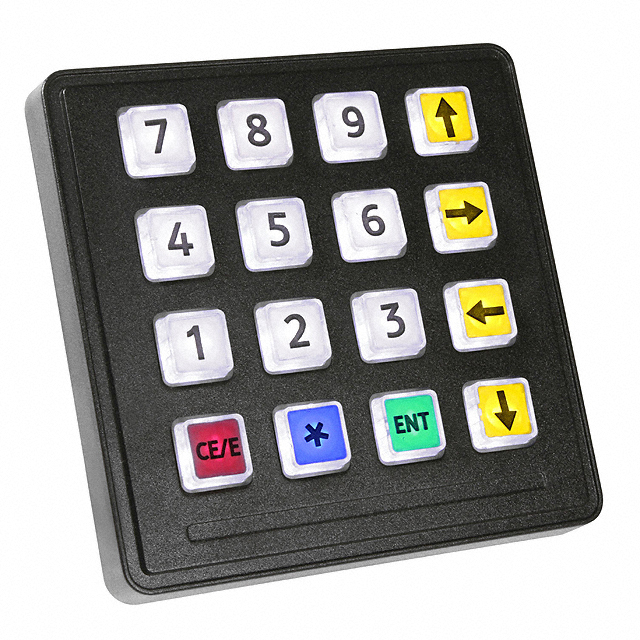

STORM INTERFACE 7207-161W203	2000000 Cycles	CE	Interchangeable	Panel Mount Front or Rear	Illuminated - White	Pin Header	Conductive Rubber	Transparent Key Cap	Black	16	Matrix	Multiple	0.05 A 24 VDC	Customizable (Included)	-20 ░C	60 °C	IP65 - Dust Tight Water Resistant	4	4	5 VDC

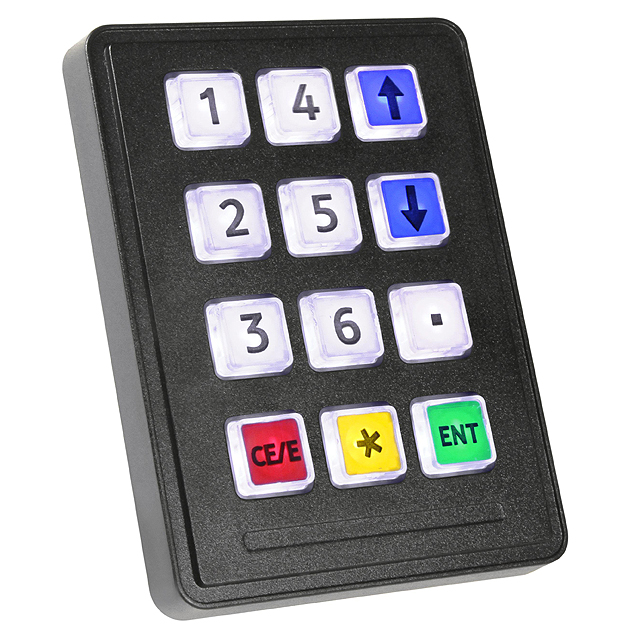

STORM INTERFACE 7207-121W203	2000000 Cycles	CE	Interchangeable	Panel Mount Front or Rear	Illuminated - White	Pin Header	Conductive Rubber	Transparent Key Cap	Black	12	Matrix	Multiple	0.05 A 24 VDC	Customizable (Included)	-20 ░C	60 °C	IP65 - Dust Tight Water Resistant	3	4	5 VDC
STORM INTERFACE 7207-041W203	2000000 Cycles	CE	Interchangeable	Panel Mount Front or Rear	Illuminated - White	Pin Header	Conductive Rubber	Transparent Key Cap	Black	4	Matrix	Multiple	0.05 A 24 VDC	Customizable (Included)	-20 ░C	60 °C	IP65 - Dust Tight Water Resistant			5 VDC

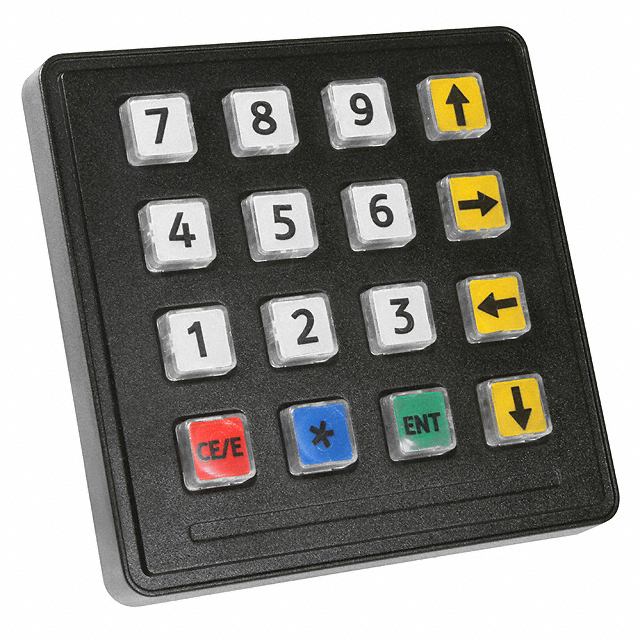

STORM INTERFACE 7207-1610203	2000000 Cycles	CE	Interchangeable	Panel Mount Front or Rear	Non-Illuminated	Pin Header	Conductive Rubber	Transparent Key Cap	Black	16	Matrix	Multiple	0.05 A 24 VDC	Customizable (Included)	-20 ░C	60 °C	IP65 - Dust Tight Water Resistant	4	4

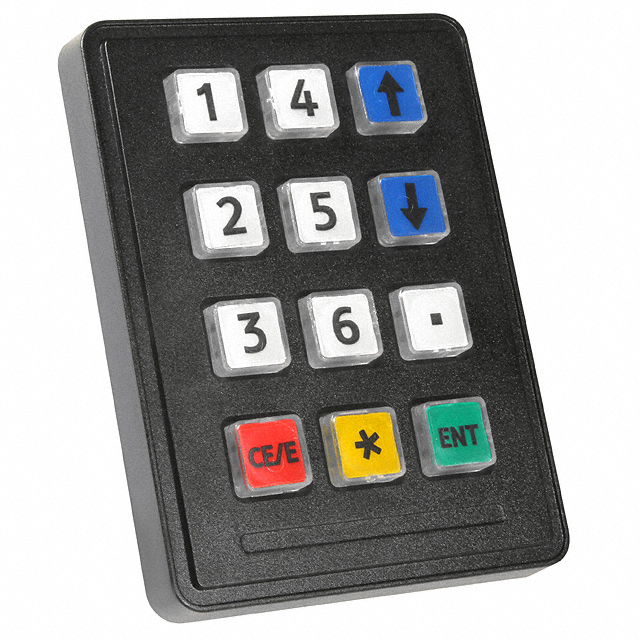

STORM INTERFACE 7207-1210203	2000000 Cycles	CE	Interchangeable	Panel Mount Front or Rear	Non-Illuminated	Pin Header	Conductive Rubber	Transparent Key Cap	Black	12	Matrix	Multiple	0.05 A 24 VDC	Customizable (Included)	-20 ░C	60 °C	IP65 - Dust Tight Water Resistant	3	4
