MUN12AD01 Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
DC DC CONVERTER 0.8-6V
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Package / Case | Applications | Features | Number of Outputs | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Min) [Min] | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Type | Efficiency | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Voltage - Output 1 [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

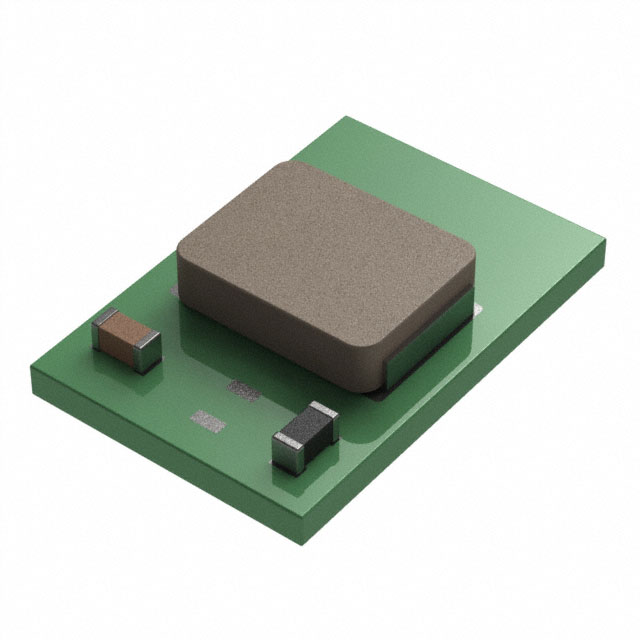

 Delta Electronics/Cyntec | 0.1 in | 2.6 mm | 3.9 mm | 0.06 " | 0.15 " | 1.6 mm | 85 °C | -40 C | 16 V | 6-LDFN Module | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 1 | 1 A | Surface Mount | 4.5 V | 3.9 | 6-DFN | 2.6 | Non-Isolated PoL Module | 94 % | 0.8 V | 6 V | |

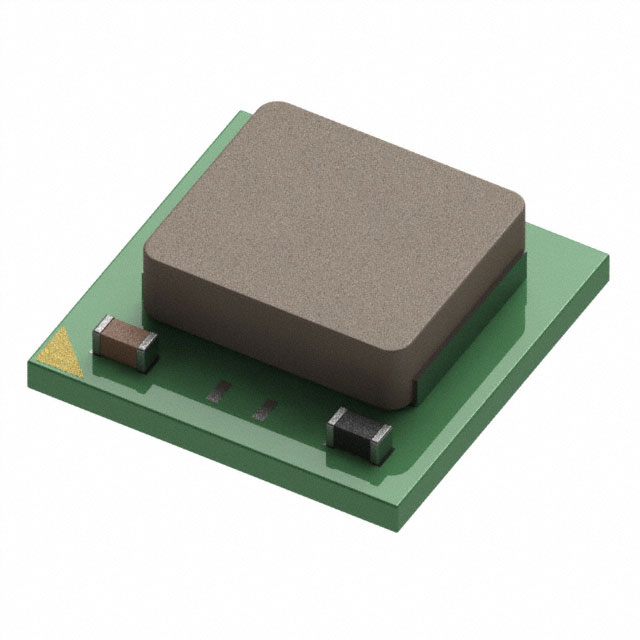

 Delta Electronics/Cyntec | 0.14 in | 3.5 mm | 3.5 mm | 0.07 in | 0.14 in | 1.7 mm | 85 °C | -40 C | 17 V | 8-LQFN Exposed Pad Module | ITE (Commercial) | OCP OTP Remote On/Off UVLO | 1 | 1 A | Surface Mount | 4.5 V | 8-QFN (3.5x3.5) | Non-Isolated PoL Module | 95 % | 1 V | 5 V |
