TI900 Series

Catalog

THERM PAD 20MMX10MM WHT

Part	Shelf Life	Backing, Carrier	Outline [y]	Outline [x]	Thickness	Thickness	Type	Color	Thermal Conductivity	Material	Shape	Adhesive
t-Global Technology TI900-20-10-0.12-0	24 Months	Viscose	10 mm	20 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Rectangular
t-Global Technology TI900-10-50-0.12-0	24 Months	Viscose	10 mm	50 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Rectangular
t-Global Technology TI900-100-100-0.12-0	24 Months	Viscose	100 mm	100 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Square

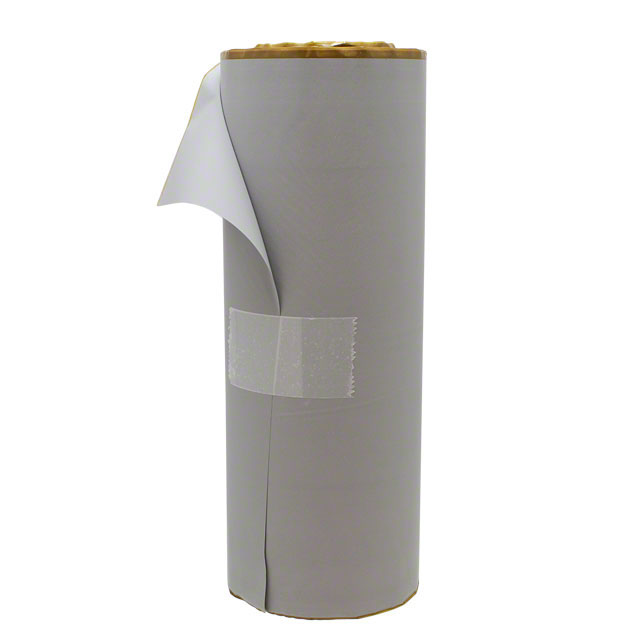

t-Global Technology TI900-50M-320-0.12-0	24 Months	Viscose	320 mm	50 m	0.005 in	5 mils	Conductive Insulator Pad Roll	White	1.8 W/m-K	Silicone	Rectangular
t-Global Technology TI900-25-25-0.12-0	24 Months	Viscose	25 mm	25 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Square
t-Global Technology TI900-5-5-0.12-0	24 Months	Viscose	5 mm	5 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Square
t-Global Technology TI900-24-21.01-0.12-0	24 Months	Viscose	21.01 mm	24 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Rectangular
t-Global Technology TI900-144.4-38-0.12-0	24 Months	Viscose	38 mm	144.4 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Rectangular
t-Global Technology TI900-105-37-0.12-0	24 Months	Viscose	37 mm	105 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Rectangular
t-Global Technology TI900-105-27-0.12-0	24 Months	Viscose	27 mm	105 mm	0.005 in	5 mils	Conductive Insulator Pad	White	1.8 W/m-K	Silicone	Rectangular	Adhesive - One Side
