053313 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 10POS 2MM

Part	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Shrouding	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Insulation Height	Insulation Height	Features	Style	Number of Rows	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Insulation Material	Material Flammability Rating	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Number of Positions

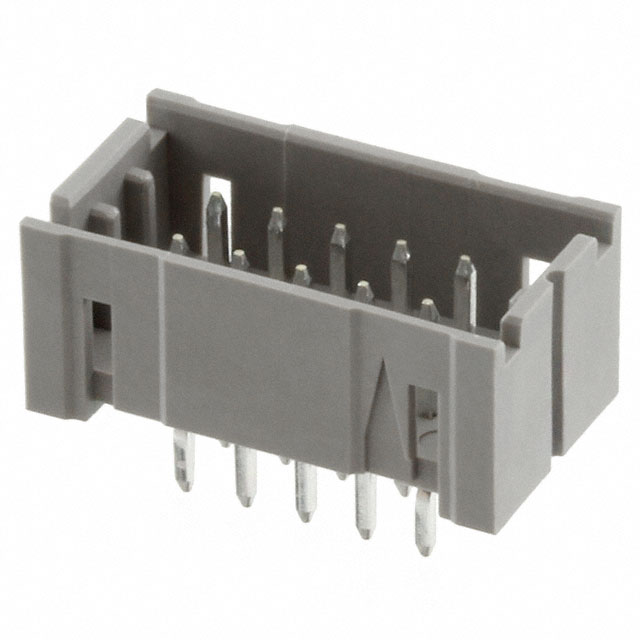

Molex 0533131065	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	10	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All
Molex 0533132265	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	22 positions	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All
Molex 0533131865	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	18	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All
Molex 0533135015	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm		Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	50	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Polyester Glass Filled	UL94 V-0	Square	Gray	All	Tin-Lead
Molex 0533131665	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm		6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All		16
Molex 0533132015	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm		Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	20	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Polyester Glass Filled	UL94 V-0	Square	Gray	All	Tin-Lead
Molex 0533132065	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	20	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All
Molex 0533135065	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	50	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All

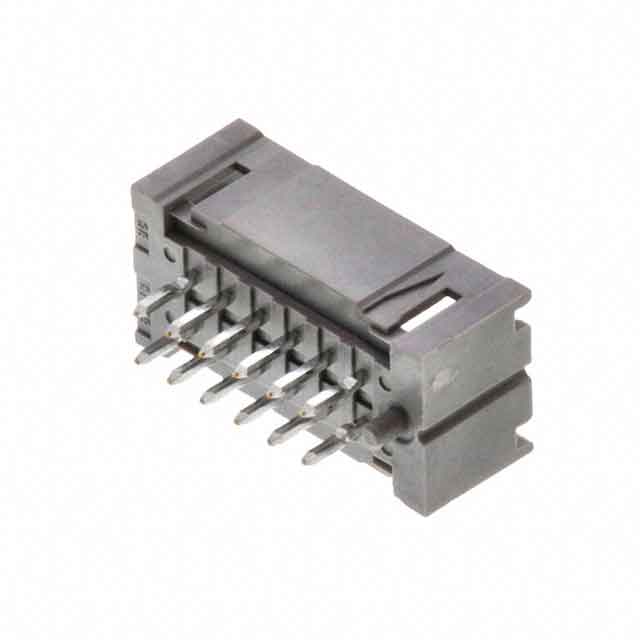

Molex 0533131265	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	12	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All

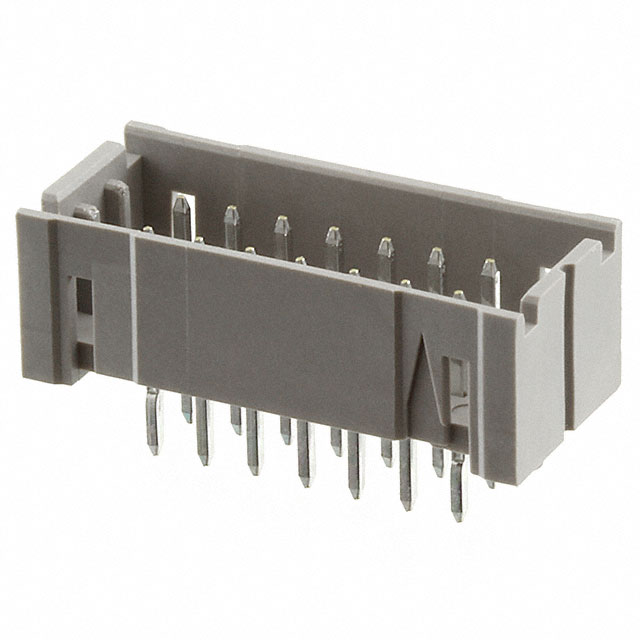

Molex 0533131465	Through Hole	3.5 mm	0.138 in	78.7 µin	2 µm	Tin	Brass	Shrouded - 4 Wall	Header	0.15 in	3.81 mm	14	6.5 mm	0.256 in	Board Guide	Board to Cable/Wire	2	Male Pin	0.079 in	2 mm	0.098 in	2.5 mm	Push-Pull	Solder	Nylon Polyamide (PA)	UL94 V-0	Square	Gray	All
