628W3W Series
Manufacturer: EDAC Inc.
Beta
⌘K

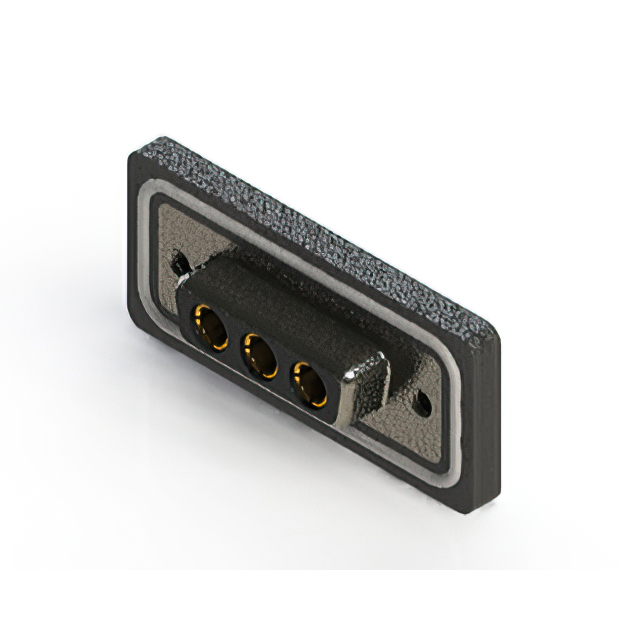

CONN D-SUB RCPT 3P PNL MNT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Dielectric Material | Contact Material | Voltage Rating | Contact Type | Mounting Type | Current Rating (Amps) | Shell Size, Connector Layout | Number of Positions | Material Flammability Rating | Connector Type | Connector Style | Shell Material, Finish | Contact Finish | Ingress Protection | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Features | Flange Feature | Flange Feature | Termination | Contact Finish Thickness | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 40 A | 2 (DA A) - 3W3 | 3 | UL94 V-0 | Receptacle Female Sockets | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 5 µin | 0.127 µm | 1 | Shielded | Housing/Shell | 4-40 | |||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 40 A | 2 (DA A) - 3W3 | 3 | UL94 V-0 | Receptacle Female Sockets | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 1 | Shielded | Housing/Shell | 4-40 | Solder | Flash | |||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 20 A | 2 (DA A) - 3W3 | 3 | UL94 V-0 | Receptacle Female Sockets | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 5 µin | 0.127 µm | 1 | Shielded | Housing/Shell | 4-40 | Solder | ||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 40 A | 3WK3 A DA | 3 | UL94 V-0 | Receptacle Female Sockets and Male Pins | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 1 | Shielded | Housing/Shell (M3) | Solder | Flash | 2 | |||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 40 A | 2 (DA A) - 3W3 | 3 | UL94 V-0 | Receptacle Female Sockets | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 5 µin | 0.127 µm | 1 | Shielded | Housing/Shell | 4-40 | Solder | ||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 40 A | 3WK3 A DA | 3 | UL94 V-0 | Receptacle Female Sockets and Male Pins | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 1 | Shielded | Housing/Shell (M3) | Flash | 2 | ||||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 30 A | 2 (DA A) - 3W3 | 3 | UL94 V-0 | Receptacle Female Sockets | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 1 | Shielded | Housing/Shell (M3) | Flash | |||||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 20 A | 3WK3 A DA | 3 | UL94 V-0 | Receptacle Female Sockets and Male Pins | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 5 µin | 0.127 µm | 1 | Shielded | Housing/Shell (M3) | 2 | |||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 40 A | 2 (DA A) - 3W3 | 3 | UL94 V-0 | Receptacle Female Sockets | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 1 | Board Lock Shielded | Board Side (M3) | Solder | Flash | ||||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 125 VDC | Power | Panel Mount | 30 A | 3WK3 A DA | 3 | UL94 V-0 | Receptacle Female Sockets and Male Pins | Combo D-Sub | Nickel Plated Steel | Gold | IP67 - Dust Tight Waterproof | 1 | Shielded | Housing/Shell (M3) | Solder | Flash | 2 |
