ECJ.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT MALE 12POS GOLD CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Finish	Insert Material	Color	Termination	Mounting Type	Shielding	Shell Material	Shell Size - Insert	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Connector Type	Mounting Feature	Fastening Type	Ingress Protection	Orientation [custom]	Primary Material	Contact Finish - Mating	Number of Positions	Shell Size - Insert [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO ECJ.2B.312.CYC	-55 C	250 °C	7 A	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	312	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	12
LEMO ECJ.2B.314.CYB	-55 C	250 °C	6.5 A	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	314	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	14
LEMO ECJ.2B.310.CYC	-55 C	250 °C	8 A	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	310	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	10
LEMO ECJ.2B.302.CYC	-55 C	250 °C	25 A	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	302	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	2
LEMO ECJ.2B.306.CYC	-55 C	250 °C	12 Amps	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	306	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	6
LEMO ECJ.2B.316.CLA	-55 C	250 °C	6 A	Chrome	Polyetheretherketone (PEEK)	Silver		Panel Mount	Shielded	Brass		Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	16	316

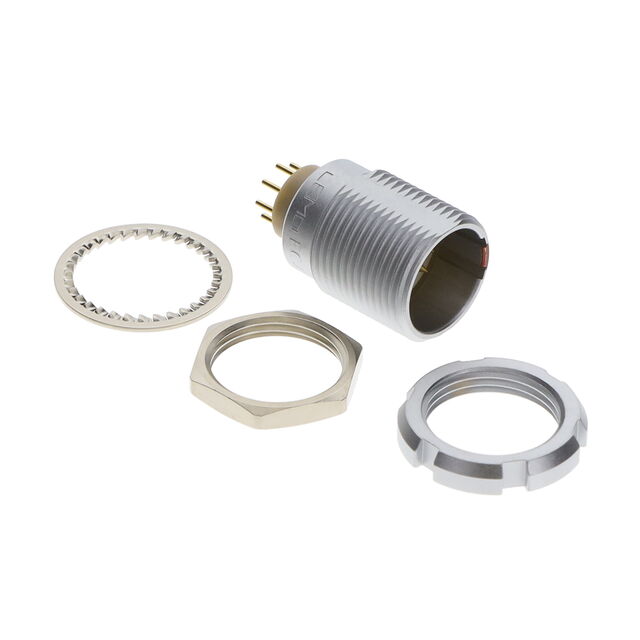

LEMO ECJ.2B.308.CLD	-55 C	250 °C	10 A	Chrome	Polyetheretherketone (PEEK)	Silver	Solder	Panel Mount Through Hole	Shielded	Brass	308	Brass	UL94 V-0			Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	8		39.4 Áin	1 Ám
LEMO ECJ.2B.302.CLA	-55 C	250 °C	25 A	Chrome	Polyetheretherketone (PEEK)	Silver		Panel Mount	Shielded	Brass	302	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	2
LEMO ECJ.2B.310.CYB	-55 C	250 °C	8 A	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	310	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	10
LEMO ECJ.2B.314.CYC	-55 C	250 °C	6.5 A	Chrome	Polyetheretherketone (PEEK)	Silver	Crimp	Panel Mount	Shielded	Brass	314	Brass	UL94 V-0	39.4 µin	1 µm	Receptacle Male Pins	Front and Rear Side Nut	Push-Pull	IP50 - Dust Protected	J	Metal	Gold	14
