R1101530 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

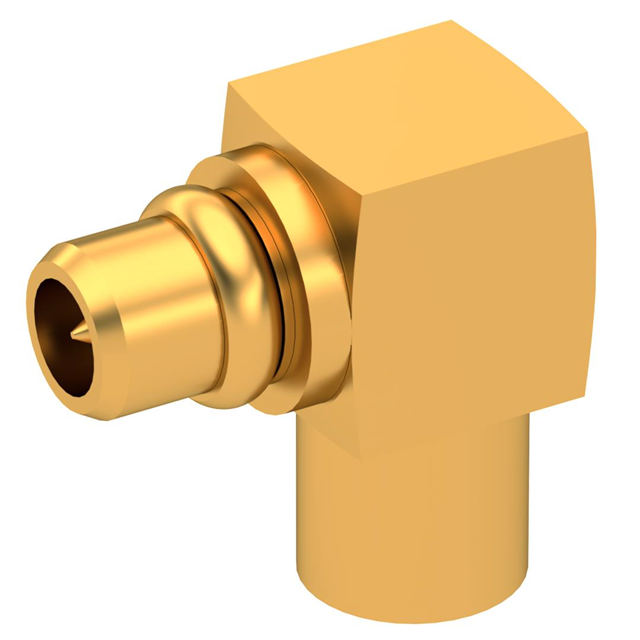

MMCX M RA SD .085
| Part | Mating Cycles | Dielectric Material | Voltage Rating | Center Contact Plating | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Includes | Shield Termination | Cable Group | Number of Ports | Connector Type | Connector Style | Center Contact Material | Housing Color | Mounting Type | Contact Termination | Impedance | Fastening Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Gold | 155 C | -55 C | Brass | 1 Connector 1 End Cap | Solder | RG-405 (.085" Semi Rigid) | 1 | Plug Male Pin | MMCX | Brass | Gold | Free Hanging (In-Line) Right Angle | Solder | 50 Ohms | Snap-On | 6000 MHz |
