har-flex-r Series
Manufacturer: HARTING
Beta
⌘K

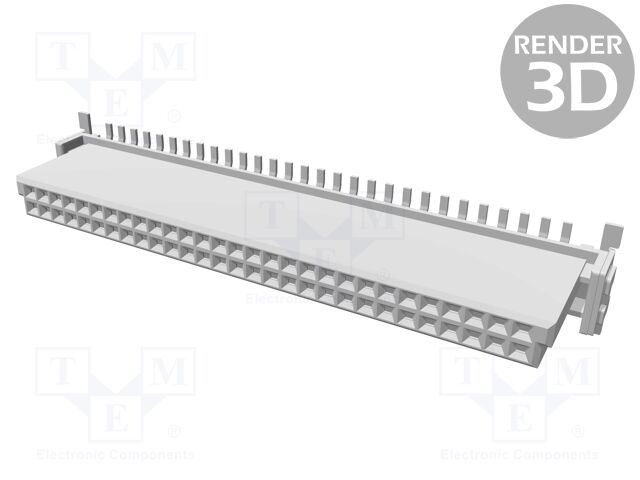

CONNECTOR: PCB TO PCB; SOCKET; FEMALE; PIN: 58; HAR-FLEX®; VERTICAL
| Part | Insulation Material | Insulation Height | Insulation Height | Features | Number of Positions | Applications | Contact Finish - Mating | Termination | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Finish - Post | Number of Positions Loaded | Contact Material | Fastening Type | Mounting Type | Mated Stacking Heights [Max] [z] | Mated Stacking Heights [Min] [z] | Contact Type | Style | Connector Type | Material Flammability Rating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Liquid Crystal Polymer (LCP) | 0.356 " | 9.05 mm | Board Guide Pick and Place Solder Retention | 58 | General Purpose | Gold | Solder | 1.27 mm | 0.05 in | 0.05 in | 1.27 mm | 2 | Square | -55 C | 125 °C | Black | Tin | All | Copper Alloy | Push-Pull | Surface Mount | 13.8 mm | 10.8 mm | Female Socket | Board to Board Cable | Receptacle | UL94 V-0 | |
 HARTING | Liquid Crystal Polymer (LCP) | 0.167 " | 4.25 mm | Board Guide Solder Retention | 22 | Gold | Solder | 1.27 mm | 0.05 in | 0.05 in | 1.27 mm | 2 | Square | -55 C | 125 °C | Black | Tin | All | Copper Alloy | Push-Pull | Right Angle Surface Mount | Male Pin | Board to Board Cable | Header | UL94 V-0 | Shrouded - 4 Wall |
