C091 11D008 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN PLUG HSG FMALE 8POS INLINE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Note | Includes | Insert Material | Contact Shape | Number of Positions | Ingress Protection | Features | Mounting Type | Type | Housing Color | Contact Size | Material Flammability Rating | Orientation | Connector Type | Shell Material | Fastening Type | Shielding | Contact Type | Shell Size - Insert | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

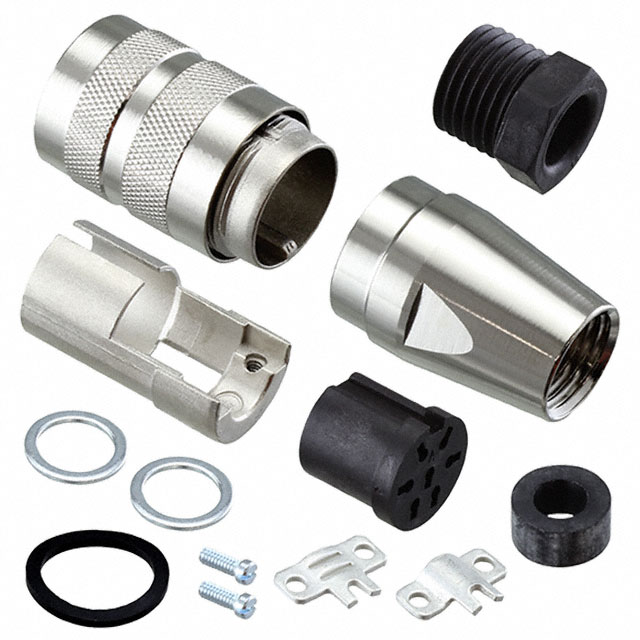

 Amphenol Tuchel Industrial | -40 C | 100 °C | Contacts Not Included | 1 Backshell 1 Cable Nut 1 Connector 1 Gasket 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers | Thermoplastic | Circular | 8 | IP65 IP67 IP69K | Backshell Cable Clamp Coupling Nut | Free Hanging (In-Line) | For Female Sockets | Silver | 1.5 mm | UL94 V-0 | Keyed | Plug Housing | Die Cast | Threaded | Shielded | Crimp | M16-8 | Nickel |
