TC20-11 Series

Catalog

LED MATRIX 5X7 2" 660NM RED

Part	Millicandela Rating	Internal Connection	Configuration [x]	Configuration [y]	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Kingbright TC20-11SRWA	48 mcd	Common Anode Row Common Cathode Column	5	7	Red	1.85 V	1.5 in	38.1 mm	8.5 mm	2.09 "	53.1 mm	0.33 in
Kingbright TC20-11YWA	9 mcd	Common Anode Row Common Cathode Column	5	7	Yellow	2.1 V	1.5 in	38.1 mm	8.5 mm	2.09 "	53.1 mm	0.33 in
Kingbright TC20-11EWA	10 mcd	Common Anode Row Common Cathode Column	5	7	Red	2 V	1.5 in	38.1 mm	8.5 mm	2.09 "	53.1 mm	0.33 in

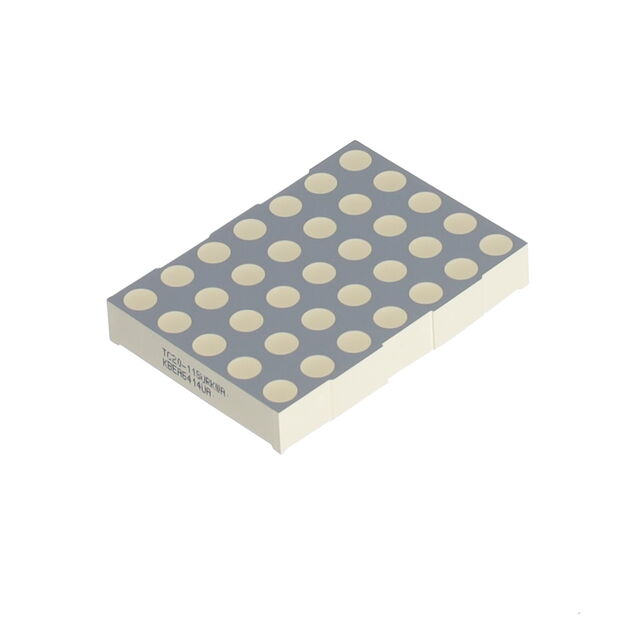

Kingbright TC20-11SURKWA	130 mcd	Common Anode Row Common Cathode Column	5	7	Red	1.95 V	2.09 in	53.1 mm		1.98 "		0.33 in	38.2 mm	8.5 mm
Kingbright TC20-11SYKWA	160 mcd	Common Anode Row Common Cathode Column	5	7	Yellow	2 V	2.09 in	53.1 mm		1.98 "		0.33 in	38.2 mm	8.5 mm
