PS2503L-1 Series

Low Input Current

Manufacturer: Renesas Electronics Corporation

Catalog

Low Input Current

Part	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Output Type	Voltage - Output (Max) [Max]	Supplier Device Package	Number of Channels	Current Transfer Ratio (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) [Max]	Mounting Type	Package / Case	Input Type
Renesas Electronics Corporation PS2503L-1-F3-A	80 mA	100 %	30 µs	20 µs	30 mA	1.1 V	1.81 mOhm	40 V	4-SMD	1	400 %	100 °C	-55 °C	250 mV	Surface Mount	4-SMD Gull Wing	DC
Renesas Electronics Corporation PS2503L-1-F3-L-A	80 mA	150 %	30 µs	20 µs	30 mA	1.1 V	1.81 mOhm	40 V	4-SMD	1	300 %	100 °C	-55 °C	250 mV	Surface Mount	4-SMD Gull Wing	DC

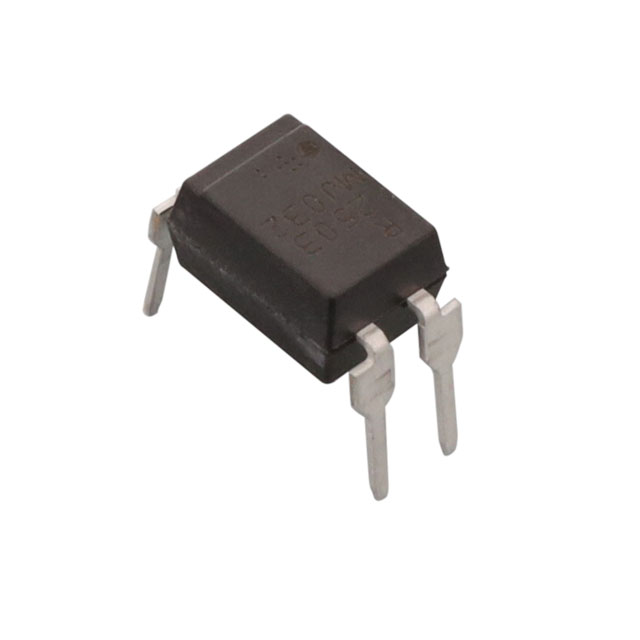

Renesas Electronics Corporation PS2503-1-M-A	80 mA	100 %	30 µs	20 µs	30 mA	1.1 V	1.81 mOhm	40 V	4-DIP	1	200 %	100 °C	-55 °C	250 mV	Through Hole	4-DIP (0.300" 7.62mm)	DC
Renesas Electronics Corporation PS2503L-1-M-A	80 mA	100 %	30 µs	20 µs	30 mA	1.1 V	1.81 mOhm	40 V	4-SMD	1	200 %	100 °C	-55 °C	250 mV	Surface Mount	4-SMD Gull Wing	DC

Catalog

Low Input Current

Description

The PS2503-1 and PS2503L-1 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2503-1 is in a plastic DIP (Dual In-line Package) and the PS2503L-1 is lead bending type (Gull-wing) for surface mount.
