LCB250 Series
Manufacturer: Panduit Corp
Beta
⌘K
LUG TERMINAL, PAN-LUG LCB SERIES, CRIMP, COMPRESSION LUG, M12
| Part | Terminal Style | Termination | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Color | Terminal Type | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Contact Finish | Mounting Type | Stud/Tab Size | Wire Gauge | Wire Gauge | Contact Material | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

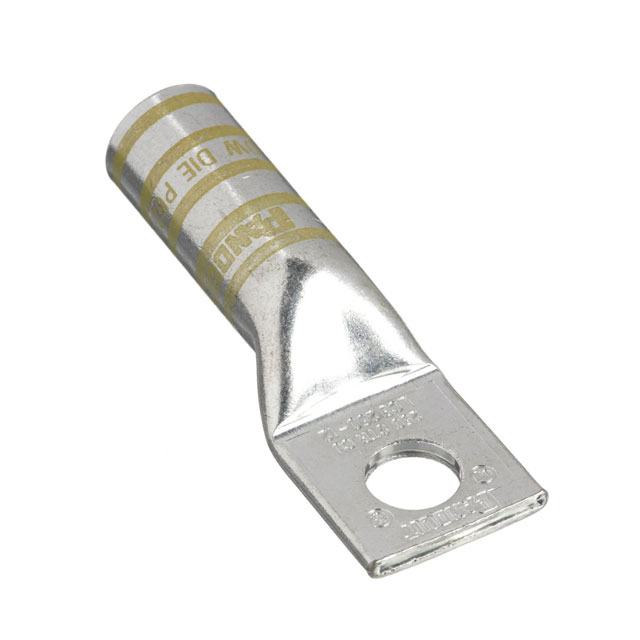

 Panduit Corp | Single Stud Hole | Barrel Crimp | 3.32 in | 84.33 mm | 0.14 " | 3.56 mm | 16 mm | 0.63 in | Yellow | Rectangular Tongue | 0.53 in | 13.46 mm | Electro-Tin | Free Hanging (In-Line) | 1/2 Stud | 250 kcmil | 250 MCM | Copper | 0.77 " | 19.56 mm | Non-Insulated | 1.17 in | 29.72 mm |
Panduit Corp | |||||||||||||||||||||||

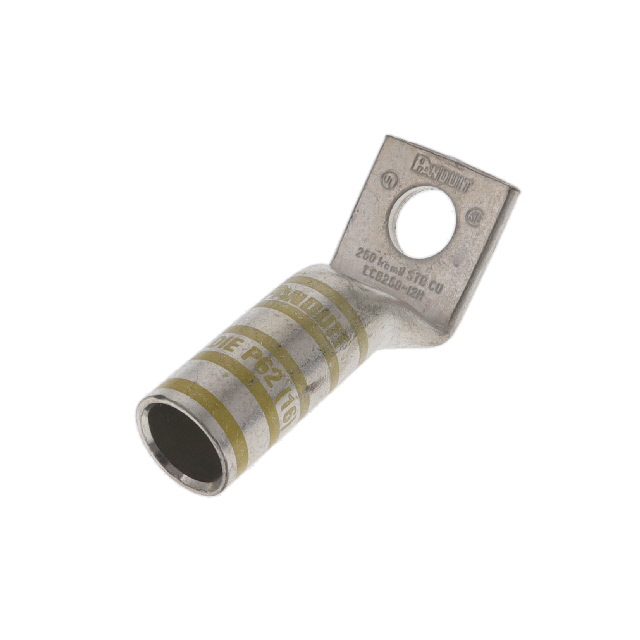

 Panduit Corp | Single Stud Hole | Barrel Crimp | 0.14 " | 3.56 mm | 16 mm | 0.63 in | Yellow | Rectangular Tongue | 0.53 in | 13.46 mm | Electro-Tin | 45° Angle Free Hanging (In-Line) | 1/2 Stud | 250 kcmil | 250 MCM | Copper | 0.77 " | 19.56 mm | Non-Insulated | 1.17 in | 29.72 mm |
