8STR Series

Catalog

CONN BARRIER STRIP 2CIRC 0.438"

Part	Operating Temperature [Max]	Operating Temperature [Min]	Terminal Screw Material	Mounting Type	Material Flammability Rating	Terminal Screw Finish	Material - Insulation	Bottom Termination	Barrier Type	Voltage Rating	Pitch [x]	Pitch [x]	Terminal Block Type	Number of Rows	Top Termination	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Wire Entries	Features	Current Rating (Amps)
TE Connectivity AMP Connectors 8STR-02-006	120 °C	-40 C	Steel	Chassis Panel	UL94 V-0	Zinc	Thermoplastic	Solder Turret	3 Wall (Tri)	600 V	0.438 in	11.12 mm	Barrier Block	1	Screws with Captive Plate	2	10 AWG	18 AWG	Black	2	Flange	30 A
TE Connectivity AMP Connectors 8STR-04-006	120 °C	-40 C	Steel	Chassis Panel	UL94 V-0	Zinc	Thermoplastic	Solder Turret	3 Wall (Tri)	600 V	0.438 in	11.12 mm	Barrier Block	1	Screws with Captive Plate	4	10 AWG	18 AWG	Black	4	Flange	30 A
TE Connectivity AMP Connectors 8STR-03-008	120 °C	-40 C	Steel	Chassis Panel	UL94 V-0	Zinc	Thermoplastic	Solder Turret	3 Wall (Tri)	600 V	0.438 in	11.12 mm	Barrier Block	1	Screws with Captive Plate	3	10 AWG	18 AWG	Black	3	Flange	30 A

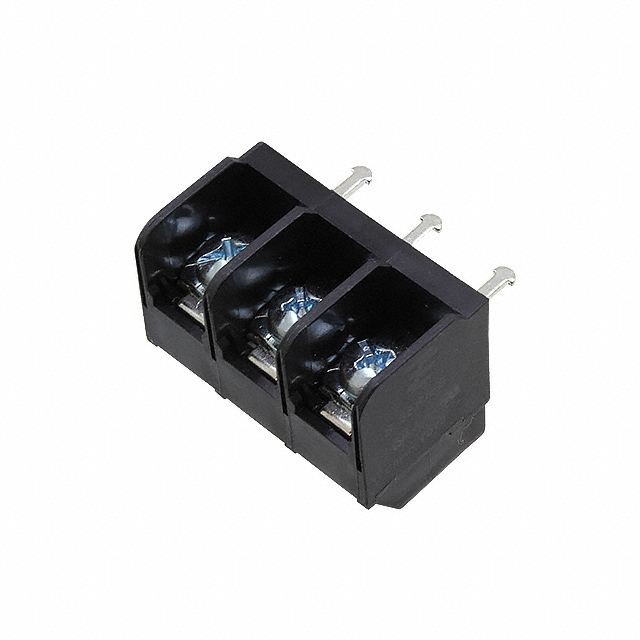

TE Connectivity AMP Connectors 8STR-03-006	120 °C	-40 C	Steel	Chassis Panel	UL94 V-0	Zinc	Thermoplastic	Solder Turret	3 Wall (Tri)	600 V	0.438 in	11.12 mm	Barrier Block	1	Screws with Captive Plate	3	10 AWG	18 AWG	Black	3	Flange	30 A
TE Connectivity AMP Connectors 8STR-10-008	120 °C	-40 C	Steel	Chassis Panel	UL94 V-0	Zinc	Thermoplastic	Solder Turret	3 Wall (Tri)	600 V	0.438 in	11.12 mm	Barrier Block	1	Screws with Captive Plate	10	10 AWG	18 AWG	Black	10	Flange	30 A
