ALCOSWITCH PB6 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

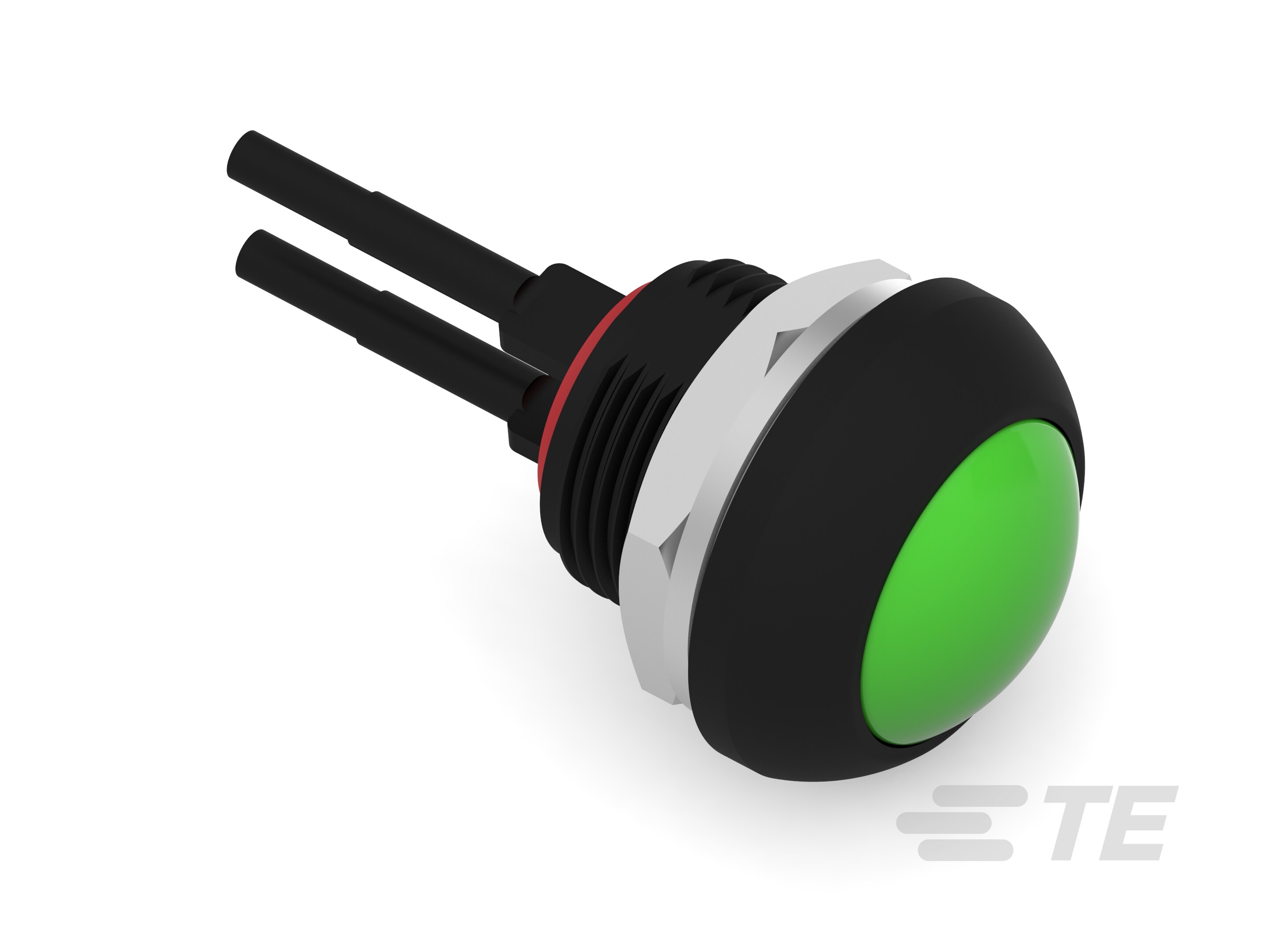

PB OFF/ON RC GRE M1 TERM IP68 500MM LHS
| Part | Voltage Rating - DC | Color - Actuator/Cap | Circuit | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Type | Actuator Type | Termination Style | Voltage Rating - AC | Ingress Protection | Actuator Marking | Switch Function | Type | Mechanical Life | Electrical Life | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 VDC | Green | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Domed Round | Wire Leads | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Standard | |||

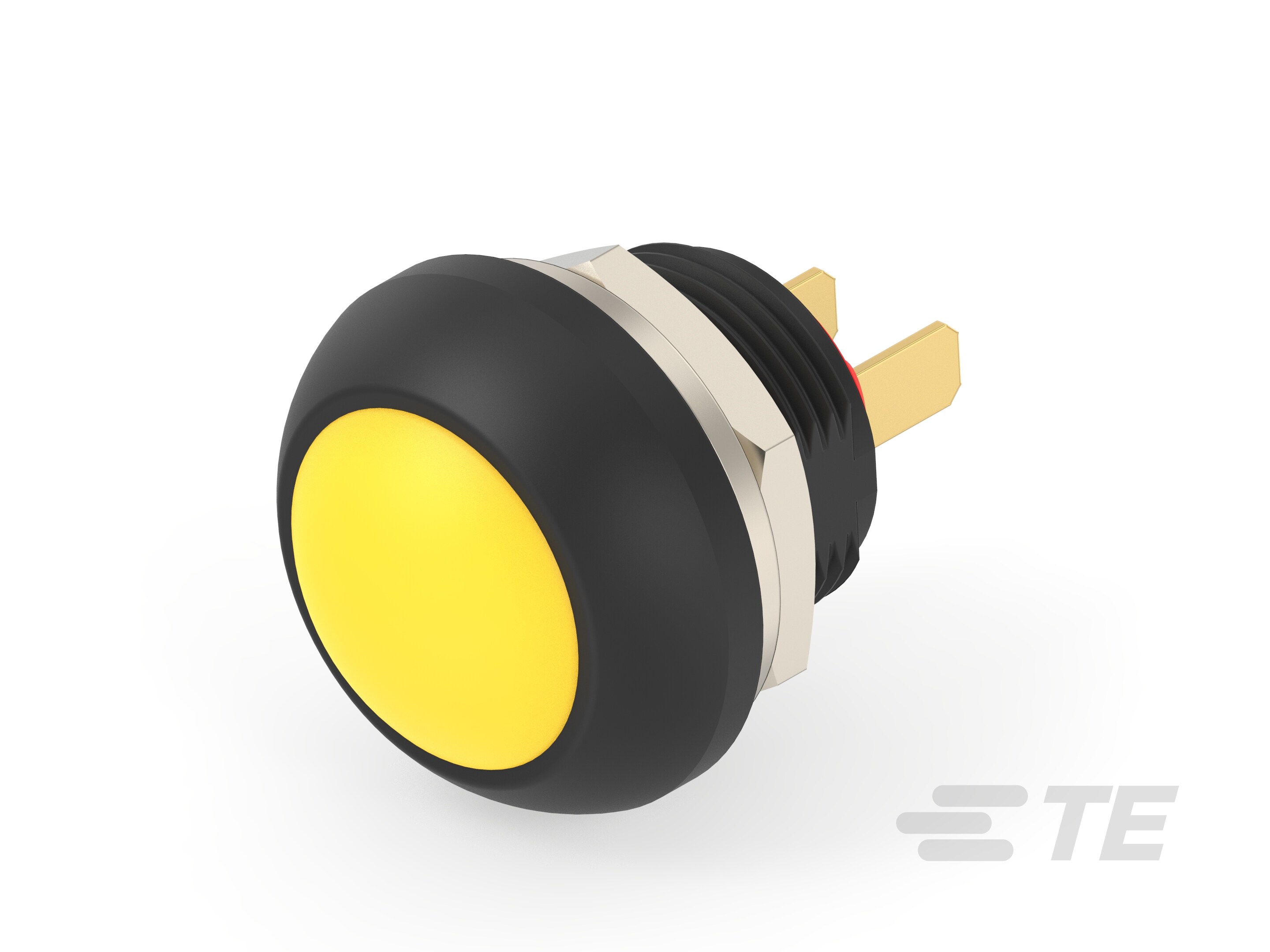

 TE Connectivity AMP Connectors | 50 VDC | Yellow | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Domed Round | Solder Lug | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Standard | |||

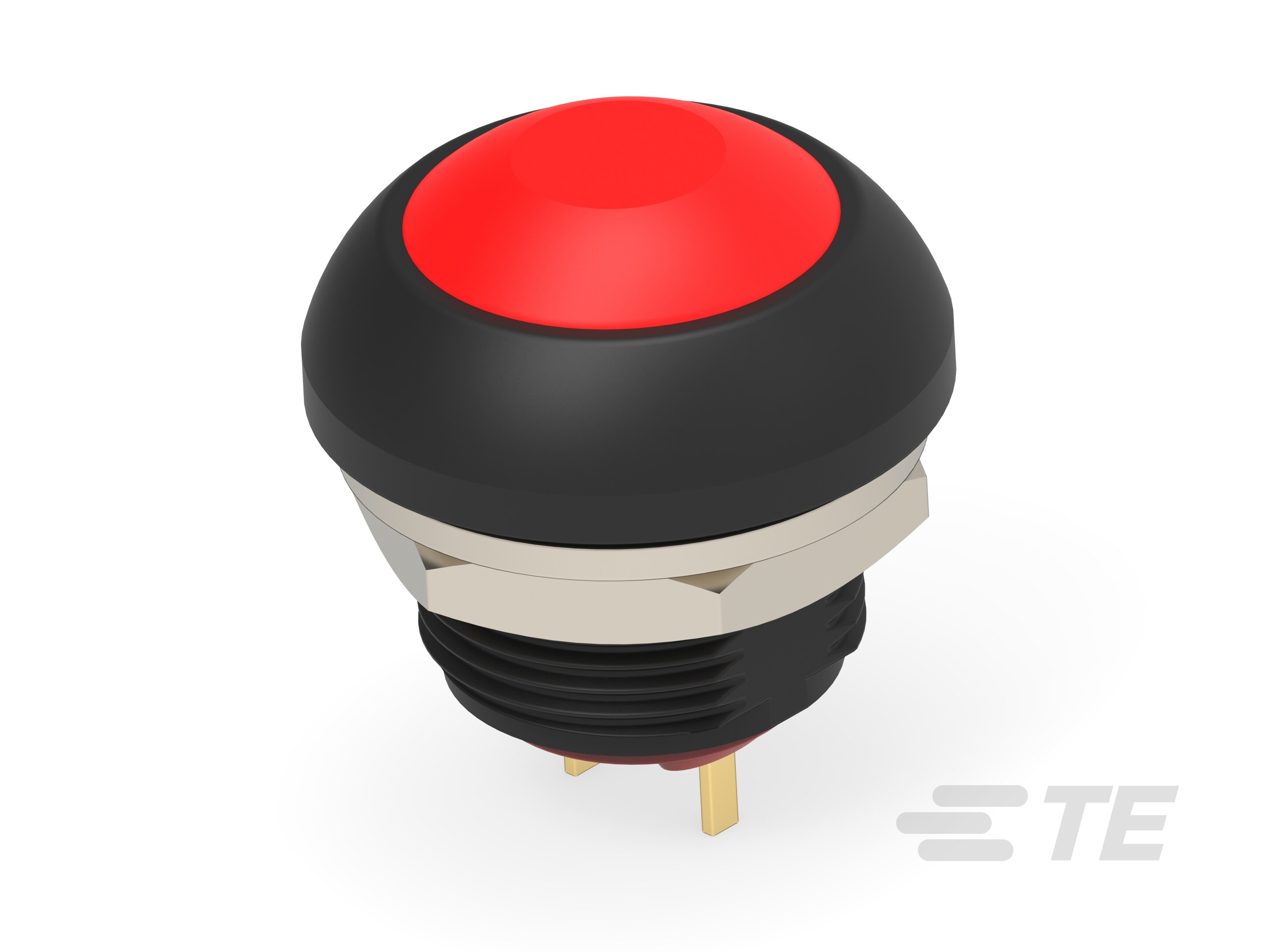

 TE Connectivity AMP Connectors | 50 VDC | Red | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | PC Pin | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Standard | |||
 TE Connectivity AMP Connectors | 50 VDC | Yellow | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Wire Leads | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Standard | 1000000 Cycles | 500000 Cycles | |
 TE Connectivity AMP Connectors | 50 VDC | Black | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Wire Leads | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Illuminated Standard | LED Red | ||
 TE Connectivity AMP Connectors | 50 VDC | Blue | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Wire Leads | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Illuminated Standard | LED Red | ||
 TE Connectivity AMP Connectors | 50 VDC | Black | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Wire Leads | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Standard | |||

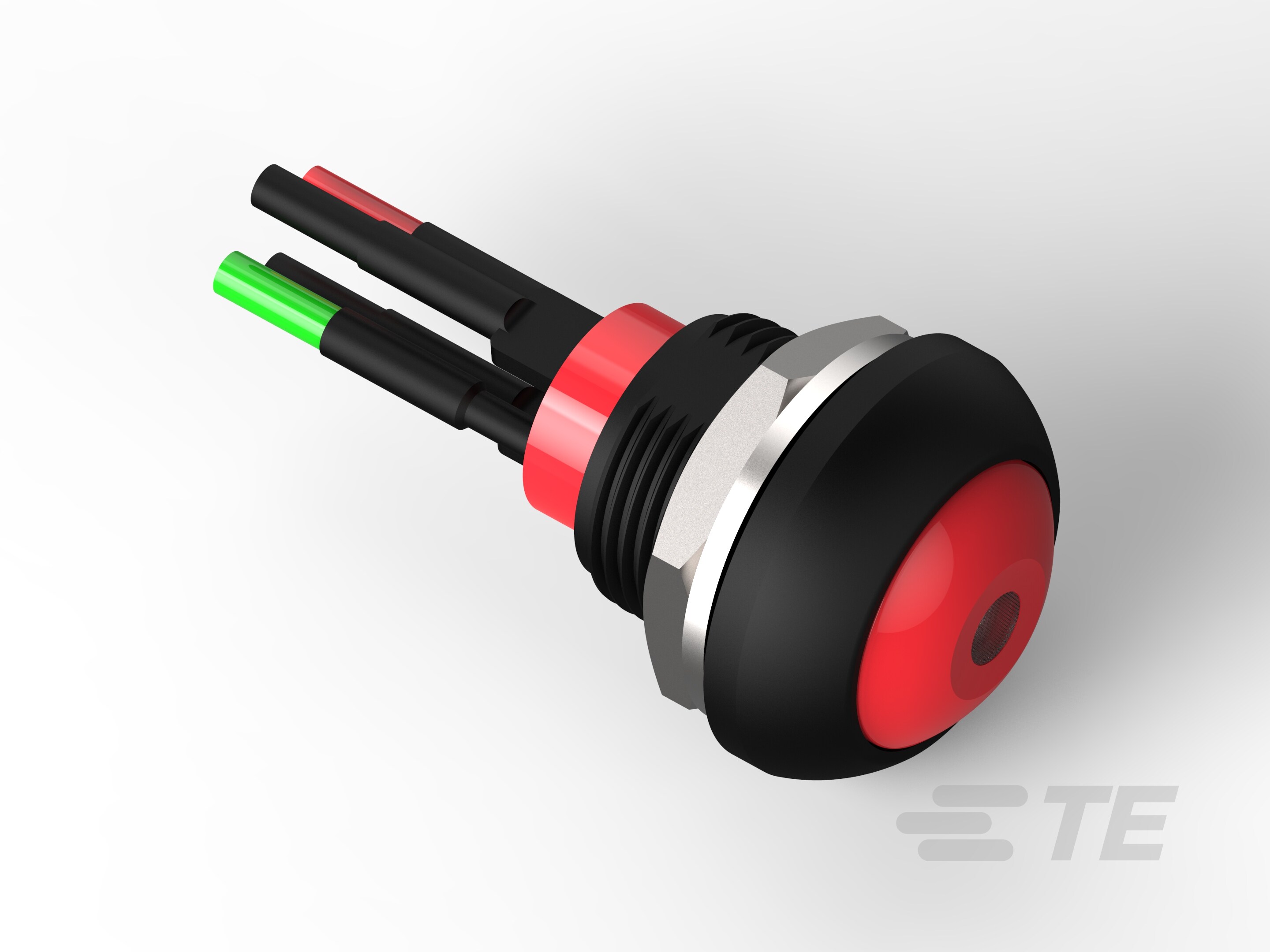

 TE Connectivity AMP Connectors | 50 VDC | Red | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Wire Leads | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Illuminated Standard | 1000000 Cycles | 500000 Cycles | Blue LED |
 TE Connectivity AMP Connectors | 50 VDC | Green | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Solder Lug | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Illuminated Standard | LED Yellow | ||

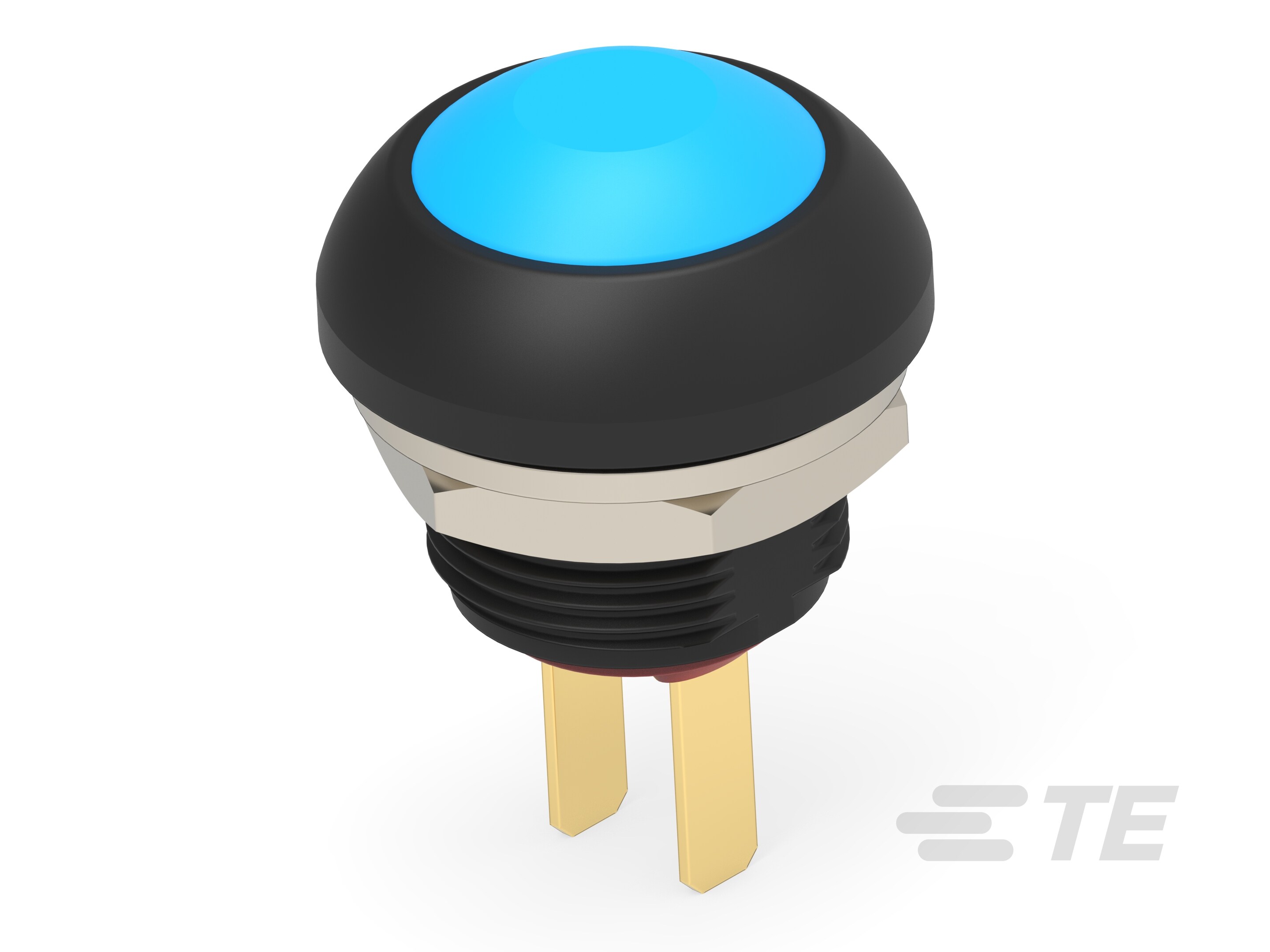

 TE Connectivity AMP Connectors | 50 VDC | Blue | SPST-NO | 13.6 mm | 85 °C | -30 ░C | 125 mA 200 mA | Panel Mount Front | Button Round | Solder Lug | 125 V | IP68 - Dust Tight Waterproof | No Marking | Off-Mom | Standard | 1000000 Cycles | 500000 Cycles |
