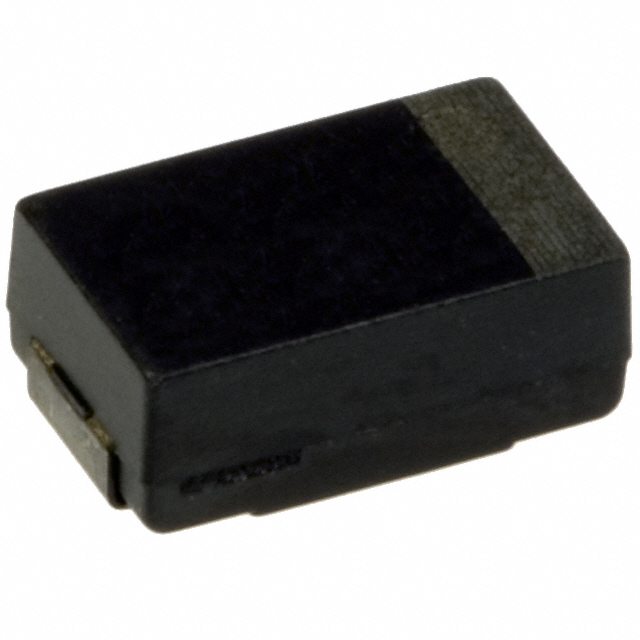

EEF-HD Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY 120UF 20% 4V SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Applications	Type	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Lifetime @ Temp.	Ripple Current @ High Frequency	Tolerance	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Package / Case	Voltage - Rated [custom]
Panasonic Industrial Automation Sales EEF-HD0G121CR	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	4 V	1000 Hrs	2.5 A	20 %	120 µF	15 mOhm	7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0E151R	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V		2.5 A	20 %	150 µF	15 mOhm	7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0D221R	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC		2.5 A	20 %	220 µF	15 mOhm	7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0J101R	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V		2.5 A	20 %	100 µF	15 mOhm	7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0D221CR	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	1000 Hrs	2.5 A	20 %	220 µF	15 mOhm	7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0D271CR	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	1000 Hrs		20 %	270 µF		7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0J101CR	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	1000 Hrs	2.5 A	20 %	100 µF	15 mOhm	7343 Metric	2917
Panasonic Industrial Automation Sales EEF-HD0K680R	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "			2.5 A	20 %	68 µF	15 mOhm	7343 Metric	2917	8 V
Panasonic Industrial Automation Sales EEF-HD0E181R	125 °C	-40 °C	3 mm	0.118 in	General Purpose	Polymer	Surface Mount	0.287 "	4.3 mm	0.169 "	7.3 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V		2.5 A	20 %	180 çF	15 mOhm	7343 Metric	2917
