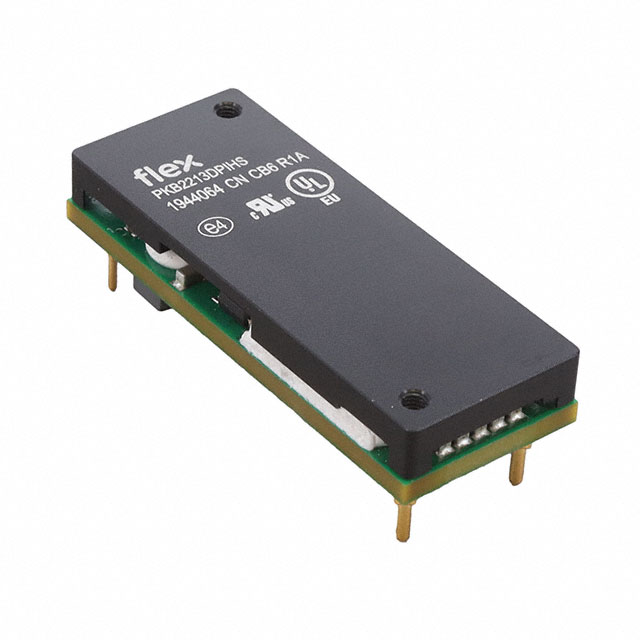

PKB221 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 12V 240W
| Part | Number of Outputs | Power (Watts) | Mounting Type | Standard Number | Type | Features | Current - Output (Max) [Max] | Approval Agency | Voltage - Output 1 | Voltage - Isolation | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Supplier Device Package | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 1 | 240 Watts | Through Hole | 62368-1 | Isolated Module | Baseplate Remote On/Off | 20 A | CB CSA IEC TUV UL | 12 V | 2250 VDC | 36 V | 18 V | Eighth Brick | 0.52 in | 22.7 mm | 58.4 mm | 0.89 in | 2.3 in | 13.2 mm | Eighth Brick | Active Low Enable | -40 °C | 125 °C | ITE (Commercial) | 95.5 % |
