ICD44S13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

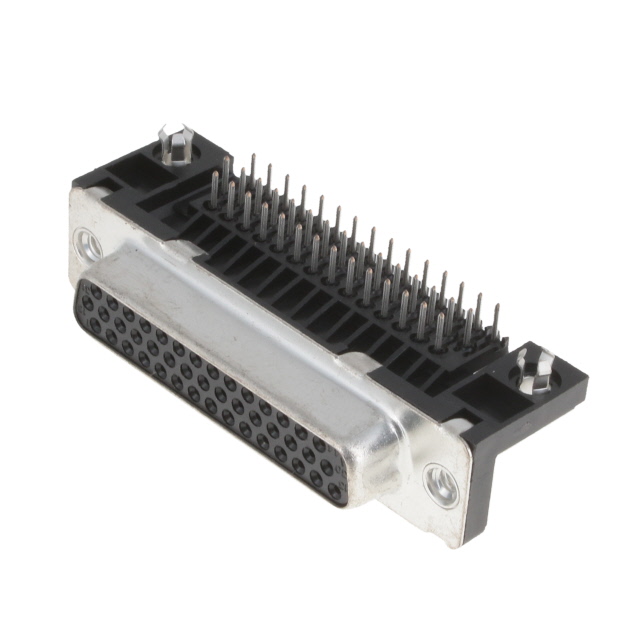

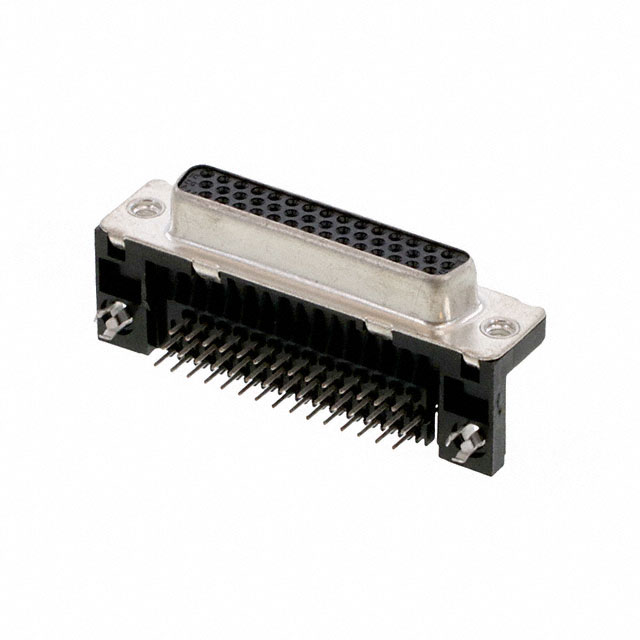

CONN D-SUB HD RCPT 44P R/A SLDR
| Part | Voltage Rating | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Positions | Shell Material, Finish | Current Rating (Amps) | Connector Type | Shell Size, Connector Layout | Mounting Type | Contact Type | Connector Style | Number of Rows [custom] | Features | Backset Spacing | Backset Spacing | Contact Finish Thickness | Termination | Flange Feature | Flange Feature | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 300 VDC | Copper Alloy | Polyester | Black | -55 C | 125 °C | Gold | 44 | Nickel Plated Steel | 3 A | Receptacle Female Sockets | 3 | Right Angle Through Hole | Signal | D-Sub High Density | 3 | Board Lock Mounting Brackets | 8.89 mm | 0.35 in | Flash | Solder | Housing/Shell | 4-40 | UL94 V-0 | ||
 Amphenol ICC (FCI) | 300 VDC | Phosphor Bronze | Polyester | Black | -55 C | 125 °C | Gold | 44 | Nickel Plated Steel | 3 A | Receptacle Female Sockets | 3 | Right Angle Through Hole | Signal | D-Sub High Density | 3 | Board Lock Mounting Brackets | 8.89 mm | 0.35 in | Solder | Housing/Shell | 4-40 | UL94 V-0 | 30 Áin | 0.76 Ám | |
 Amphenol ICC (FCI) | 300 VDC | Brass | Polyester | Black | -55 C | 125 °C | Gold | 44 | Nickel Plated Steel | 3 A | Receptacle Female Sockets | 3 | Right Angle Through Hole | Signal | D-Sub High Density | 3 | Board Lock Mounting Brackets | 8.89 mm | 0.35 in | Solder | Housing/Shell (M3) | UL94 V-0 | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | 300 VDC | Copper Alloy | Polyester | Black | -55 C | 125 °C | Gold | 44 | Nickel Plated Steel | 3 A | Receptacle Female Sockets | 3 | Right Angle Through Hole | Signal | D-Sub High Density | 3 | Board Lock Mounting Brackets | 8.89 mm | 0.35 in | Solder | 4-40 Mating Side Female Screwlock | UL94 V-0 | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | 300 VDC | Phosphor Bronze | Polyester | Black | -55 C | 125 °C | Gold | 44 | Nickel Plated Steel | 3 A | Receptacle Female Sockets | 3 | Right Angle Through Hole | Signal | D-Sub High Density | 3 | 8.89 mm | 0.35 in | Solder | Housing/Shell | 4-40 | UL94 V-0 | 30 Áin | 0.76 Ám | ||
 Amphenol ICC (FCI) | 300 VDC | Copper Alloy | Polyester | Black | -55 C | 125 °C | Gold | 44 | Nickel Plated Steel | 3 A | Receptacle Female Sockets | 3 | Right Angle Through Hole | Signal | D-Sub High Density | 3 | Board Lock Mounting Brackets | 8.89 mm | 0.35 in | Solder | Housing/Shell | 4-40 | UL94 V-0 | 30 Áin | 0.76 Ám |
