EF12 Series

Catalog

EF12 POWER ENTRY MODULE W. FILTER 20A ROHS COMPLIANT: YES

Part	Filter Type	Ingress Protection	Approval Agency	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Material Flammability Rating	Current Rating - Appliance Inlet	Mounting Type	Voltage Rating - Appliance Inlet	Current Rating - Circuit Breaker	Switch Features	Features	Connector Style	Current Rating - Filter
SCHURTER Inc. EF12.2196.1110.01	Filtered (EMI RFI) - Commercial	IP40	cURus ENEC	6.3 mm	Quick Connect	0.25 "	81 mm	33.9 mm	Receptacle Male Blades - Module	UL94 V-0	10 A	Flange Panel Mount	250 VAC	20 A	Circuit Breaker Switch On-Off	Shielded	IEC 320-C20
SCHURTER Inc. EF12.0035.1110.01	Filtered (EMI RFI) - Commercial	IP40	cURus ENEC	6.3 mm	Quick Connect	0.25 "	81 mm	33.9 mm	Receptacle Male Blades - Module	UL94 V-0	10 A	Flange Panel Mount	250 VAC	20 A	Circuit Breaker Switch On-Off	Shielded	IEC 320-C20
SCHURTER Inc. EF12.2115.1110.01	Filtered (EMI RFI) - Commercial	IP40	cURus ENEC	6.3 mm	Quick Connect	0.25 "	81 mm	33.9 mm	Receptacle Male Blades - Module	UL94 V-0	10 A	Flange Panel Mount	250 VAC	20 A	Circuit Breaker Switch On-Off	Shielded	IEC 320-C20
SCHURTER Inc. EF12.0885.2110.01	Filtered (EMI RFI) - Commercial	IP40	cURus ENEC	6.3 mm	Quick Connect	0.25 "	81 mm	33.9 mm	Receptacle Male Blades - Module	UL94 V-0	10 A	Flange Panel Mount	250 VAC	15 A	Circuit Breaker Switch On-Off	Shielded	IEC 320-C20	15 A

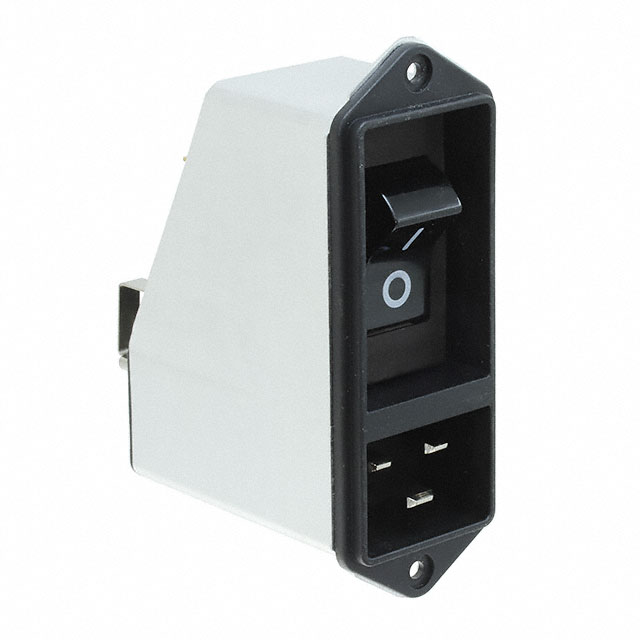

SCHURTER Inc. EF12.2105.1110.02	Filtered (EMI RFI) - Commercial	IP40	cURus ENEC	6.3 mm	Quick Connect	0.25 "	81 mm	33.9 mm	Receptacle Male Blades - Module	UL94 V-0	10 A	Flange Panel Mount	250 VAC	16 A	Circuit Breaker Switch On-Off	Shielded	IEC 320-C20

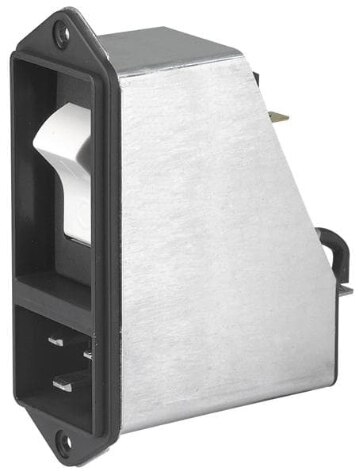

SCHURTER Inc. EF12.2078.2110.01	Filtered (EMI RFI) - Commercial	IP40	cURus ENEC	6.3 mm	Quick Connect	0.25 "	81 mm	33.9 mm	Receptacle Male Blades - Module	UL94 V-0	16 A	Flange Panel Mount	250 VAC	16 A	Circuit Breaker Switch On-Off	Shielded	IEC 320-C20	16 A
