USB4120 Series
Manufacturer: GCT
Beta
⌘K

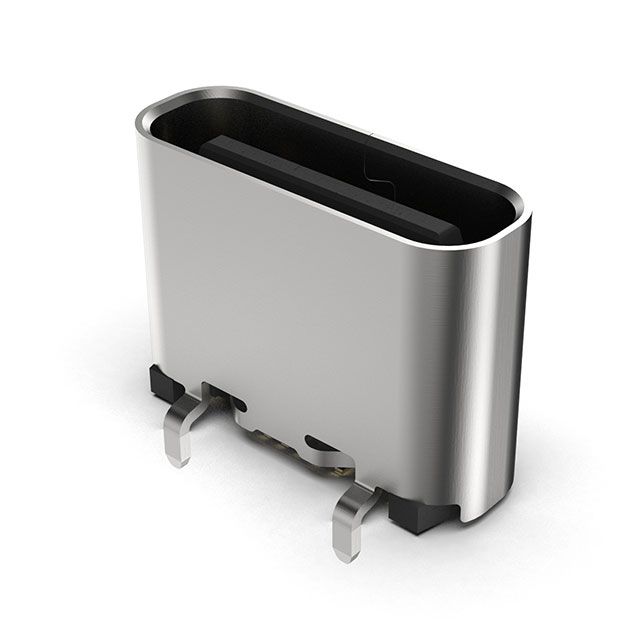

USB CONNECTOR, USB TYPE C, USB 2.0, RECEPTACLE, 16 POSITIONS, SURFACE MOUNT, VERTICAL
| Part | Insulation Color | Contact Finish | Material Flammability Rating | Shell/Shielding Material | Termination | Features | Mounting Type | Current Rating (Amps) | Mating Cycles | Voltage - Rated | Number of Contacts [custom] | Number of Contacts [custom] | Number of Contacts [custom] | Gender | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Specifications | Mounting Feature | Shielding | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GCT | Black | Gold | UL94 V-0 | Steel (SUS304) | Solder | Board Guide Solder Retention Tab | Surface Mount Through Hole | 5 A | 20000 | 48 VDC | 8 | 16 | 24 | Receptacle | USB-C (USB TYPE-C) | 85 °C | -25 °C | USB 2.0 | Vertical | Shielded | 1 |
