624-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

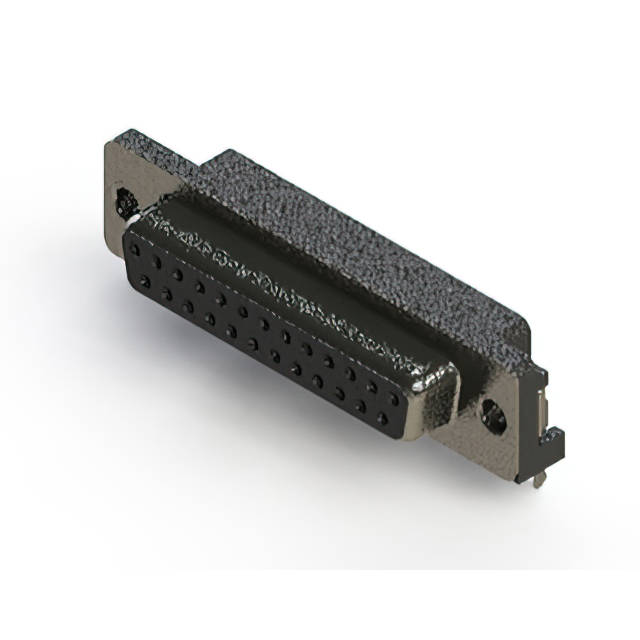

624 SERIES RIGHT ANGLE D-SUB PLU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Dielectric Material | Contact Type | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Connector Type | Flange Feature | Flange Feature | Number of Positions | Backset Spacing | Backset Spacing | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Style | Contact Finish | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | 25 | 0.197 in | 5 mm | 2 | 30 Áin | 0.76 Ám | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (M3) | 25 | 0.197 in | 5 mm | 2 | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 25 | 0.197 in | 5 mm | 2 | 15 µin | 0.38 µm | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 25 | 0.197 in | 5 mm | 2 | 30 Áin | 0.76 Ám | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | 25 | 0.197 in | 5 mm | 2 | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | Flash | ||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | 25 | 0.197 in | 5 mm | 2 | 15 µin | 0.38 µm | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (M3) | 25 | 0.197 in | 5 mm | 2 | 15 µin | 0.38 µm | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 25 | 0.197 in | 5 mm | 2 | 30 Áin | 0.76 Ám | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 25 | 0.197 in | 5 mm | 2 | 15 µin | 0.38 µm | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Signal | Board Edge Right Angle Through Hole | UL94 V-0 | 3 A | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 25 | 0.197 in | 5 mm | 2 | Board Lock Shielded | D-Sub | Gold | Solder | B DB | 3 | Nickel Plated Steel | Flash |
