0034.1513 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

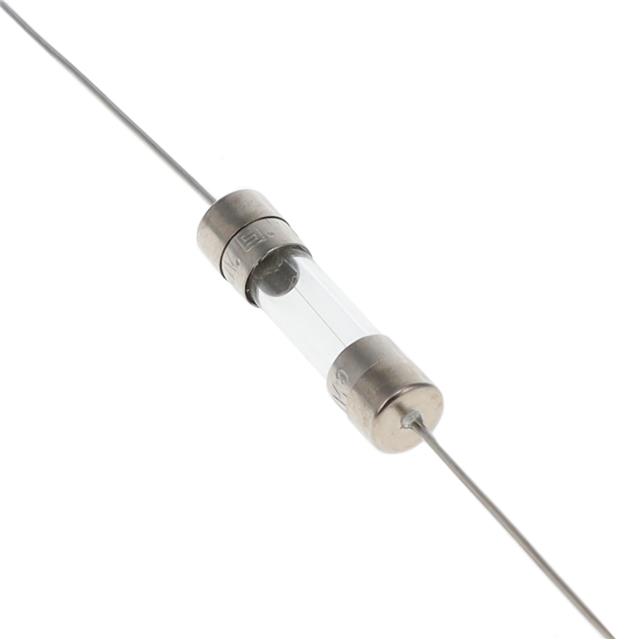

FUSE GLASS 500MA 250VAC 5X20MM
| Part | Current Rating (Amps) | Melting I²t | Response Time | Fuse Type | Package / Case [y] | Package / Case | Package / Case [x] | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.5 A | 0.151 I²t | Fast Blow | Cartridge Glass | 20 mm | Axial | 5 mm | -55 C | 125 °C | 35 A | 0.213 in | 0.886 in | 22.5 mm | 5.4 mm | 250 V | Through Hole |
