8S2011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

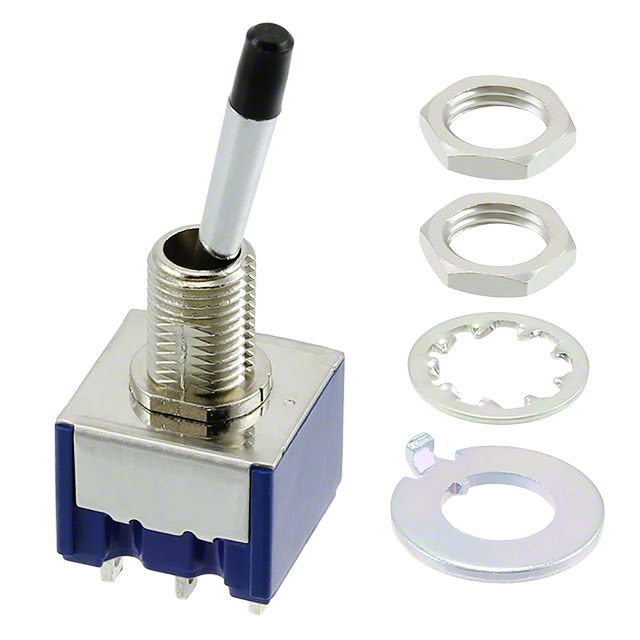

SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Mounting Type | Switch Function | Termination Style | Panel Cutout Dimensions [diameter] | Circuit | Features | Bushing Thread | Voltage Rating - AC | Actuator Type | Actuator Length [x] | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | Panel Mount | On-On | Solder Lug | 6.5 mm | DPDT | Black Cap | 1/4-40 | 125 V | Standard Round with Cap | 15.2 mm | 4 A 6 A | 85 °C | -20 ░C | Non-Illuminated | 30 V |
